| Manufacturer Part Number: | 5700100221F |
|---|---|
| Manufacturer: | Dialight |
| Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
| Available Quantity: | 9124 Pieces |
| Unit Price: | Quote by Email |

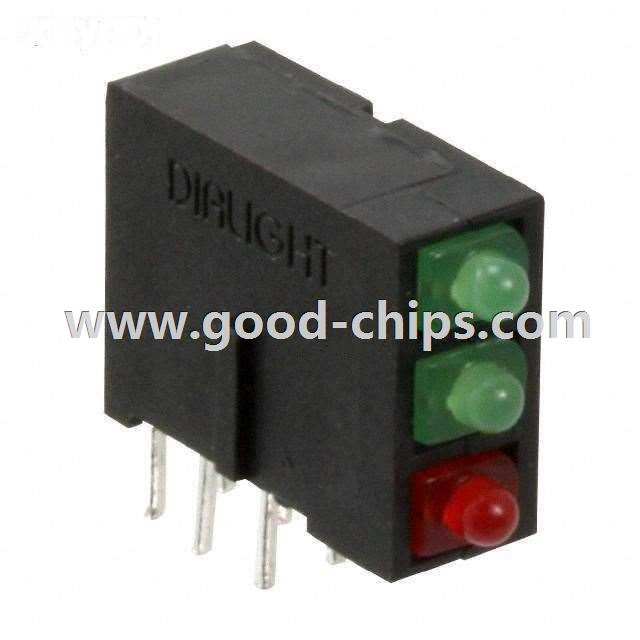

| Description: | LED Circuit Board Indicator 3 High Green (x 2), Red (x 1) Diffused, Tinted 2.2V Green, 2V Red 25mA Green, 30mA Red Round with Domed Top, 1.81mm Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5700100221F Datasheet |
| Internal Part Number | 898-5700100221F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 570 Series LEDs | |
| Category | Optoelectronics | |
| Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Manufacturer | Dialight | |
| Series | 570 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Green (x 2), Red (x 1) | |
| Wavelength - Peak | 565nm, 627nm | |
| Configuration | 3 High | |
| Current | 25mA Green, 30mA Red | |
| Millicandela Rating | 10mcd Green, 15mcd Red | |
| Viewing Angle | 70° | |
| Lens Type | Diffused, Tinted | |
| Lens Style/Size | Round with Domed Top, 1.81mm | |
| Voltage Rating | 2.2V Green, 2V Red | |
| Mounting Type | Through Hole, Right Angle | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5700100221F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5700100221F is in stock for immediate shipping now. We are the distributor of Dialight all series components. The condition of 5700100221F is new and unused, you can buy 5700100221F Dialight with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5700100221F.
