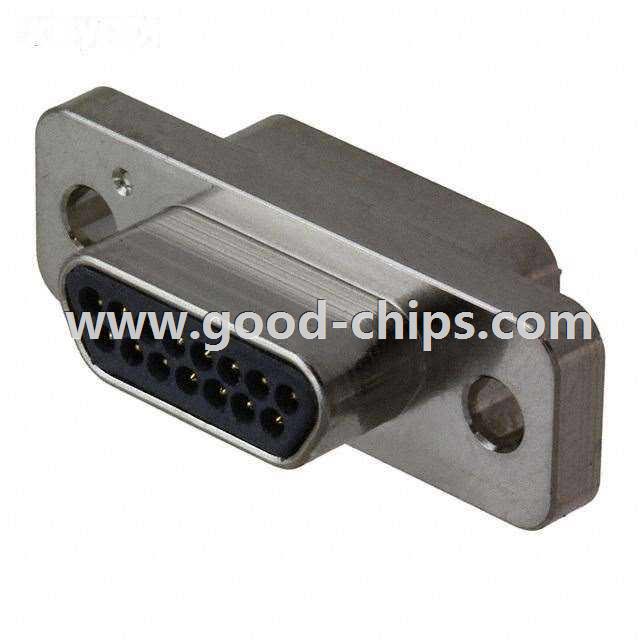

| Manufacturer Part Number: | 56F011-104 |
|---|---|
| Manufacturer: | API Technologies Corp |
| Product Category: | D-Sub Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 15 Position D-Type, Micro-D Plug, Male Pins Connector, Free Hanging (In-Line) Solder Cup |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 56F011-104 Datasheet |
| Internal Part Number | 898-56F011-104 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Micro-D Filter Connectors | |
| Category | Connectors, Interconnects | |
| Family | D-Sub Connectors | |
| Manufacturer | API Technologies Corp | |
| Series | Micro D | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | D-Type, Micro-D | |
| Connector Type | Plug, Male Pins | |
| Number of Positions | 15 | |
| Number of Rows | 2 | |
| Shell Size, Connector Layout | 0.050 Pitch x 0.050 Row to Row | |
| Contact Type | Signal | |
| Mounting Type | Free Hanging (In-Line) | |
| Flange Feature | Housing/Shell (Unthreaded) | |
| Termination | Solder Cup | |
| Features | Filter | |
| Shell Material, Finish | Aluminum, Nickel Plated, Electroless | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Ingress Protection | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Voltage Rating | 100V | |
| Current Rating | 3A | |
| Housing Material | Plastic | |
| Color | - | |
| Standard Package | 10 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 56F011-104 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
56F011-104 is in stock for immediate shipping now. We are the distributor of API Technologies Corp all series components. The condition of 56F011-104 is new and unused, you can buy 56F011-104 API Technologies Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 56F011-104.
