Manufacturer Part Number: | 5682F1_5 |
---|---|
Manufacturer: | Visual Communications Company - VCC |
Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
Available Quantity: | 13971 Pieces |
Unit Price: | Quote by Email |

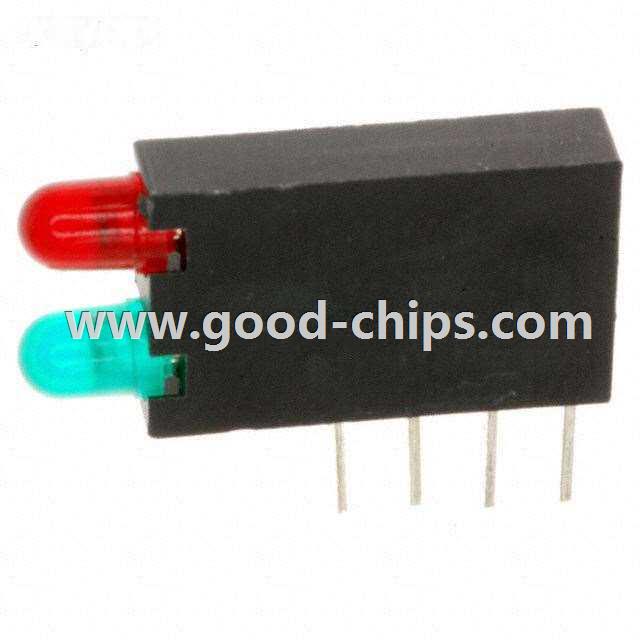

Description: | LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused, Tinted 2.3V Green, 2.2V Red 10mA Round with Domed Top, 3mm (T-1) Through Hole, Right Angle |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 5682F1_5 Datasheet |
Internal Part Number | 898-5682F1_5 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 5680F/5682F/5684F Series LEDs | |
Category | Optoelectronics | |
Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
Manufacturer | Visual Communications Company - VCC | |
Series | 5682F | |
Packaging | Bulk | |
Part Status | Active | |
Color | Green (x 1), Red (x 1) | |
Wavelength - Peak | 635nm | |
Configuration | 2 High | |
Current | 10mA | |
Millicandela Rating | 10mcd | |
Viewing Angle | - | |
Lens Type | Diffused, Tinted | |
Lens Style/Size | Round with Domed Top, 3mm (T-1) | |
Voltage Rating | 2.3V Green, 2.2V Red | |
Mounting Type | Through Hole, Right Angle | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 5682F1_5 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
5682F1_5 is in stock for immediate shipping now. We are the distributor of Visual Communications Company - VCC all series components. The condition of 5682F1_5 is new and unused, you can buy 5682F1_5 Visual Communications Company - VCC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5682F1_5.
