| Manufacturer Part Number: | 5682F1_1 |
|---|---|
| Manufacturer: | Visual Communications Company - VCC |
| Product Category: | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs |
| Available Quantity: | 10735 Pieces |
| Unit Price: | Quote by Email |

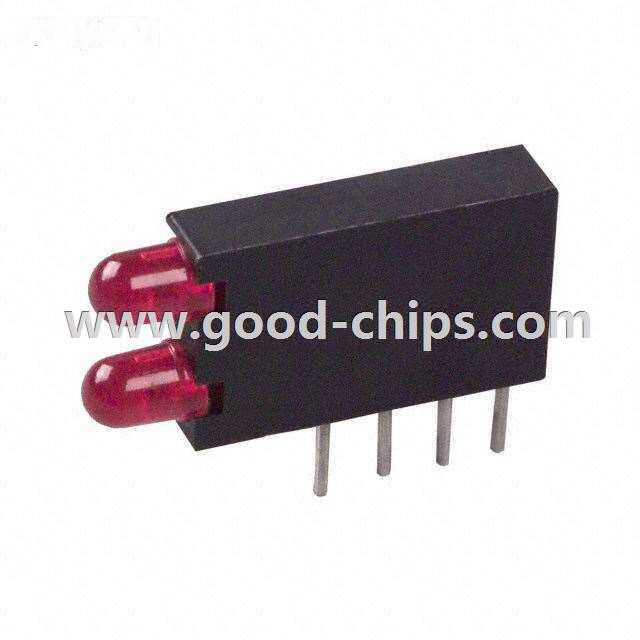

| Description: | LED Circuit Board Indicator 2 High Red (x 2) Tinted 2.2V 10mA Round with Domed Top, 3mm (T-1) Through Hole, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5682F1_1 Datasheet |
| Internal Part Number | 898-5682F1_1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 5680F/5682F/5684F Series LEDs | |
| Category | Optoelectronics | |
| Family | LEDs - Circuit Board Indicators, Arrays, Light Bars, Bar Graphs | |
| Manufacturer | Visual Communications Company - VCC | |
| Series | 5682F | |
| Packaging | Bulk | |
| Part Status | Active | |
| Color | Red (x 2) | |
| Wavelength - Peak | 635nm | |
| Configuration | 2 High | |
| Current | 10mA | |
| Millicandela Rating | 10mcd | |
| Viewing Angle | - | |
| Lens Type | Tinted | |
| Lens Style/Size | Round with Domed Top, 3mm (T-1) | |
| Voltage Rating | 2.2V | |
| Mounting Type | Through Hole, Right Angle | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5682F1_1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5682F1_1 is in stock for immediate shipping now. We are the distributor of Visual Communications Company - VCC all series components. The condition of 5682F1_1 is new and unused, you can buy 5682F1_1 Visual Communications Company - VCC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5682F1_1.
