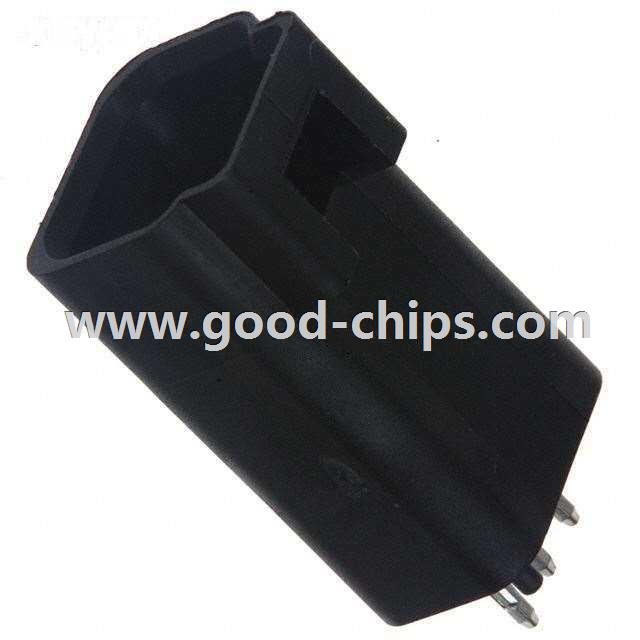

| Manufacturer Part Number: | 566-003-420-301 |
|---|---|
| Manufacturer: | EDAC Inc. |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 9031 Pieces |
| Unit Price: | Quote by Email |
| Description: | 3 Positions Plug Connector 0.079" (2.00mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 566-003-420-301 Datasheet |
| Internal Part Number | 898-566-003-420-301 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 565-568,570 Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | EDAC Inc. | |
| Series | 566 | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Contact Type | Male Pin | |
| Connector Type | Plug | |
| Number of Positions | 3 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | Latch Holder | |
| Features | Waterproof (Mated, IP67) | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 566-003-420-301 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
566-003-420-301 is in stock for immediate shipping now. We are the distributor of EDAC Inc. all series components. The condition of 566-003-420-301 is new and unused, you can buy 566-003-420-301 EDAC Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 566-003-420-301.
