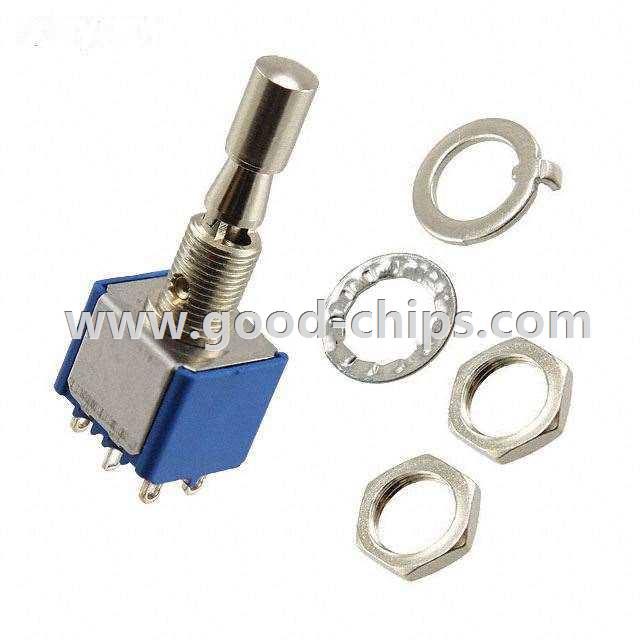

| Manufacturer Part Number: | 5649AB3V |
|---|---|
| Manufacturer: | Apem Inc. |
| Product Category: | Toggle Switches |
| Available Quantity: | 9137 Pieces |
| Unit Price: | Quote by Email |
| Description: | Toggle Switch DPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5649AB3V Datasheet |
| Internal Part Number | 898-5649AB3V | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 5000 Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Apem Inc. | |
| Series | 5000 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | DPDT | |
| Switch Function | On-Off-On | |
| Current Rating | 6A (AC), 4A (DC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | 30V | |
| Actuator Type | Locking Lever | |
| Actuator Length | 15.10mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Panel Cutout Dimensions | Circular - 6.50mm Dia | |
| Bushing Thread | 1/4-40 | |
| Ingress Protection | - | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Brass, Nickel Plated | |
| Electrical Life | 50,000 Cycles | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5649AB3V | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5649AB3V is in stock for immediate shipping now. We are the distributor of Apem Inc. all series components. The condition of 5649AB3V is new and unused, you can buy 5649AB3V Apem Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5649AB3V.
