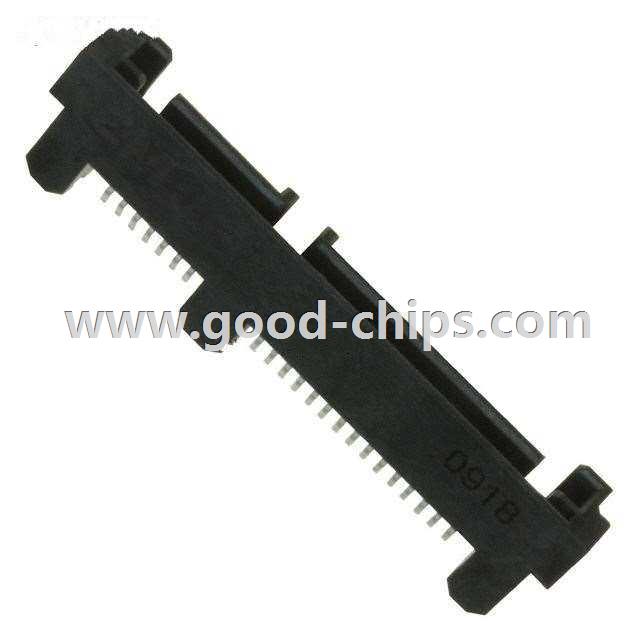

| Manufacturer Part Number: | 5622-6309-ML |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Pluggable Connectors |
| Available Quantity: | 12401 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN PLUG SATA STRADDLEMNT 22POS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5622-6309-ML Datasheet |
| Internal Part Number | 898-5622-6309-ML | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Input/Output Connector Systems Primer Twin Axial Cable Assembly for PCI Express Extended Card Applications | |
| Featured Product | Twin Axial Cables | |
| 3D Model | 5622-6309-ML.igs 5622-6309-ML.x_t 5622-6309-ML.stp | |
| Online Catalog | 5622 Series | |
| Category | Connectors, Interconnects | |
| Family | Pluggable Connectors | |
| Manufacturer | 3M | |
| Series | 5622 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Style | Plug | |
| Connector Type | SATA | |
| Number of Positions | 22 | |
| Mounting Type | Board Edge, Straddle Mount | |
| Termination | Solder | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Standard Package | 1,944 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5622-6309-ML | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5622-6309-ML is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 5622-6309-ML is new and unused, you can buy 5622-6309-ML 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5622-6309-ML.
