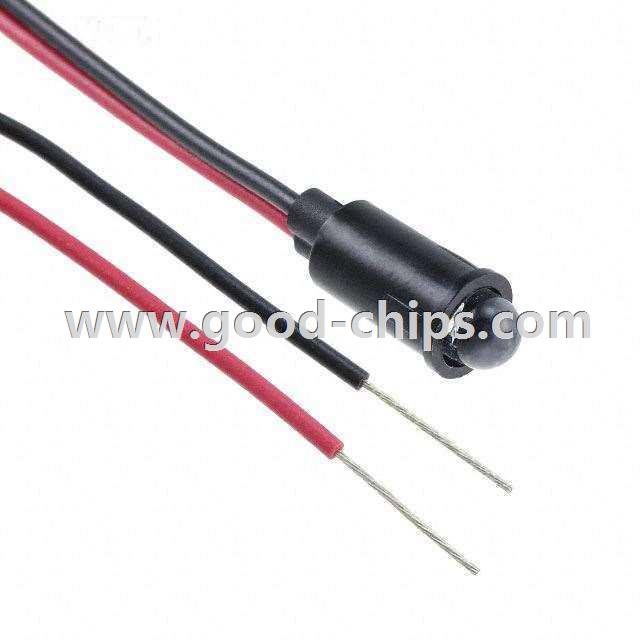

| Manufacturer Part Number: | 5596201003F |
|---|---|
| Manufacturer: | Dialight |
| Product Category: | Panel Indicators, Pilot Lights |
| Available Quantity: | 9047 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Panel Indicator Green Clear 30° 3.5V 30mA Round with Domed Top, 5mm (T-1 3/4) Wire Leads - 6" (152.40mm) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5596201003F Datasheet |
| Internal Part Number | 898-5596201003F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 559 Series | |
| Category | Optoelectronics | |
| Family | Panel Indicators, Pilot Lights | |
| Manufacturer | Dialight | |
| Series | 559 | |
| Part Status | Active | |
| Type | LED | |
| Lamp Color | Green | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Ratings | Vf (Typ), If (Max) | |
| Voltage | 3.5V | |
| Current | 30mA | |
| Panel Cutout Shape | Round | |
| Panel Cutout Dimensions | 0.25" (6.35mm) | |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4) | |
| Millicandela Rating | 5000mcd | |
| Wavelength - Peak | 525nm | |
| Viewing Angle | 30° | |
| Termination Style | Wire Leads - 6" (152.40mm) | |
| Ingress Protection | - | |
| Features | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5596201003F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5596201003F is in stock for immediate shipping now. We are the distributor of Dialight all series components. The condition of 5596201003F is new and unused, you can buy 5596201003F Dialight with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5596201003F.
