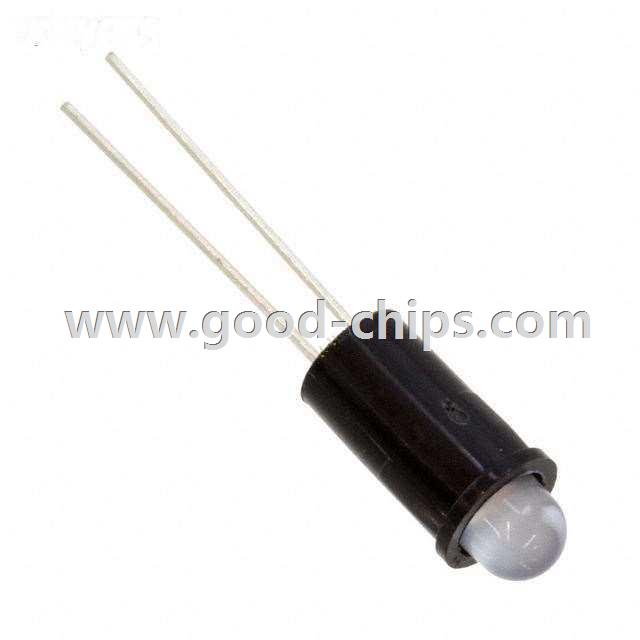

| Manufacturer Part Number: | 5593101001F |
|---|---|
| Manufacturer: | Dialight |
| Product Category: | Panel Indicators, Pilot Lights |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Panel Indicator Green, Red Diffused 80° 2.1V Green, 1.8V Red 30mA Green, 40mA Red Round with Domed Top, 5mm (T-1 3/4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5593101001F Datasheet |
| Internal Part Number | 898-5593101001F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Optoelectronics | |
| Family | Panel Indicators, Pilot Lights | |
| Manufacturer | Dialight | |
| Series | 559 | |
| Part Status | Active | |
| Type | LED | |
| Lamp Color | Green, Red | |
| Lens Color | White | |
| Lens Transparency | Diffused | |
| Ratings | Vf (Typ), If (Max) | |
| Voltage | 2.1V Green, 1.8V Red | |
| Current | 30mA Green, 40mA Red | |
| Panel Cutout Shape | Round | |
| Panel Cutout Dimensions | 0.25" (6.35mm) | |
| Lens Style/Size | Round with Domed Top, 5mm (T-1 3/4) | |
| Millicandela Rating | 20mcd Green, 60mcd Red | |
| Wavelength - Peak | 565nm Green, 660nm Red | |
| Viewing Angle | 80° | |
| Termination Style | - | |
| Ingress Protection | - | |
| Features | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5593101001F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5593101001F is in stock for immediate shipping now. We are the distributor of Dialight all series components. The condition of 5593101001F is new and unused, you can buy 5593101001F Dialight with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5593101001F.
