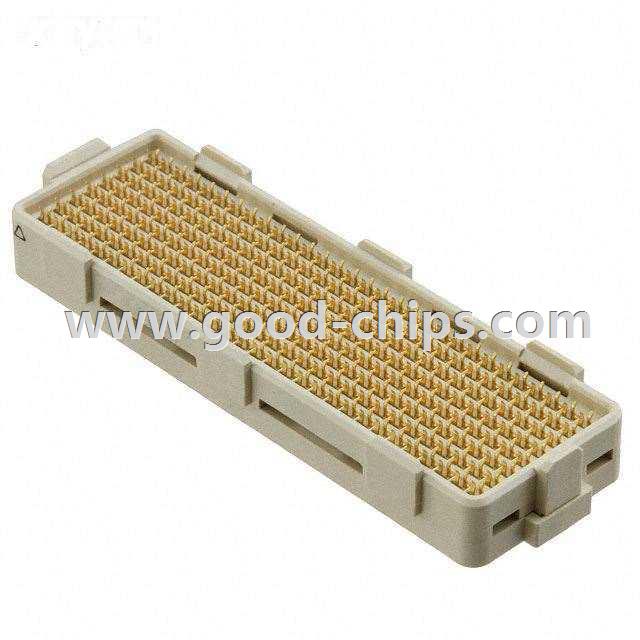

| Manufacturer Part Number: | 55755-201LF |
|---|---|
| Manufacturer: | Amphenol FCI |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9210 Pieces |
| Unit Price: | Quote by Email |
| Description: | 240 Position Connector Array, Female Sockets Surface Mount Gold or Gold, GXT™ |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 55755-201LF Datasheet |
| Internal Part Number | 898-55755-201LF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MEG-Array® Mezzanine Connectors | |
| Video File | Mezzselect Tool - Another Geek Moment | |
| Featured Product | MezzSelect | |
| PCN Design/Specification | Color 29/Mar/2012 Plating 07/Jan/2012 | |
| PCN Other | Meg-Array Location 07/Aug/2014 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Amphenol FCI | |
| Series | MEG-Array®, MezzSelect™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Array, Female Sockets | |
| Number of Positions | 240 | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 8 | |
| Mounting Type | Surface Mount | |
| Features | - | |
| Contact Finish | Gold or Gold, GXT™ | |
| Contact Finish Thickness | 80µin (2.03µm) | |
| Mated Stacking Heights | 6mm | |
| Height Above Board | 0.211" (5.35mm) | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 55755-201LF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
55755-201LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 55755-201LF is new and unused, you can buy 55755-201LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 55755-201LF.
