Manufacturer Part Number: | 55701-001LF |
---|---|
Manufacturer: | Amphenol FCI |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 9062 Pieces |
Unit Price: | Quote by Email |

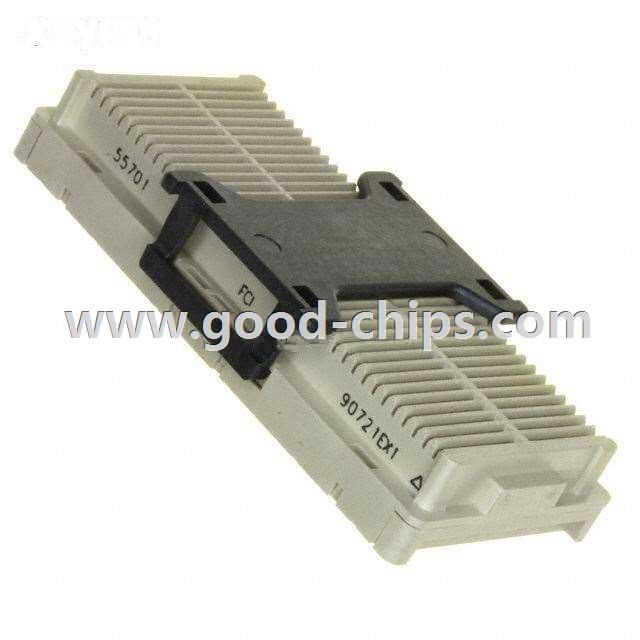

Description: | 296 signal (148 pair) Position Connector Differential Pair Array, Female Surface Mount Gold or Gold, GXT™ |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 55701-001LF Datasheet |
Internal Part Number | 898-55701-001LF | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | GIG-Array® Mezzanine Connectors | |
Video File | Mezzselect Tool - Another Geek Moment | |
Featured Product | MezzSelect GIG Array Connector | |
PCN Design/Specification | GIG-Array Plating 15/Mar/2011 GIG Array Marerial 15/Feb/2012 | |
PCN Assembly/Origin | GIG-Array Connectors 15/Jan/2013 | |
Online Catalog | GIG-Array®, MezzSelect™ | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Amphenol FCI | |
Series | GIG-Array®, MezzSelect™ | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Differential Pair Array, Female | |
Number of Positions | 296 signal (148 pair) | |
Pitch | 0.051" (1.30mm) | |
Number of Rows | 18 | |
Mounting Type | Surface Mount | |
Features | - | |
Contact Finish | Gold or Gold, GXT™ | |
Contact Finish Thickness | 30µin (0.76µm) | |
Mated Stacking Heights | 15mm, 17mm, 18mm, 20mm, 25mm, 30mm | |
Height Above Board | 0.419" (10.64mm) | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 55701-001LF | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
55701-001LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 55701-001LF is new and unused, you can buy 55701-001LF Amphenol FCI with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 55701-001LF.
