| Manufacturer Part Number: | 55505-01-04-B |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Magnetic Sensors - Position, Proximity, Speed (Modules) |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

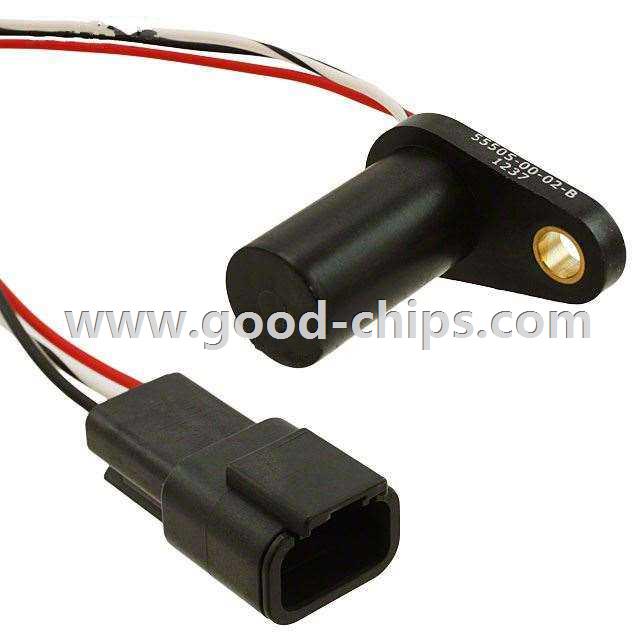

| Description: | Magnetic Hall Effect Sensor Ferrous Metals, Gear Tooth Digital Wire Leads with Connector Flange Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 55505-01-04-B Datasheet |
| Internal Part Number | 898-55505-01-04-B | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Other Related Documents | Sensor Cable Length Options | |
| Featured Product | Hall Effect Sensors | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Position, Proximity, Speed (Modules) | |
| Manufacturer | Littelfuse Inc. | |
| Series | 55505 | |
| Part Status | Obsolete | |
| Output Type | Digital | |
| Type | Hall Effect Sensor | |
| Actuator Material | Ferrous Metals, Gear Tooth | |
| Termination Style | Wire Leads with Connector | |
| Frequency | 15kHz | |
| Voltage - Supply | 4.75 V ~ 25.2 V | |
| Must Operate | - | |
| Must Release | - | |
| Operating Temperature | -40°C ~ 125°C (TA) | |
| Package / Case | Flange Mount | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 55505-01-04-B | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
55505-01-04-B is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of 55505-01-04-B is new and unused, you can buy 55505-01-04-B Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 55505-01-04-B.
