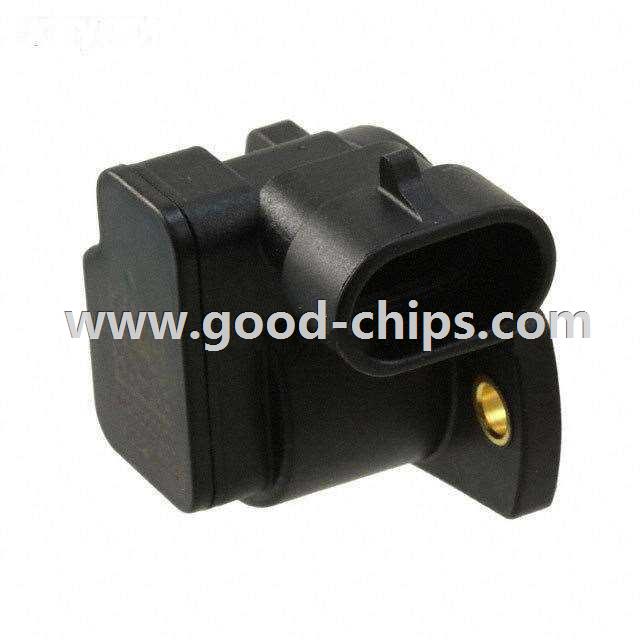

| Manufacturer Part Number: | 55250-00-00-0 |
|---|---|
| Manufacturer: | Littelfuse Inc. |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 9545 Pieces |
| Unit Price: | Quote by Email |
| Description: | Hall Effect Sensor Rotary Position Recessed Slot Connector |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 55250-00-00-0 Datasheet |
| Internal Part Number | 898-55250-00-00-0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | Magnetic Sensors | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | Littelfuse Inc. | |
| Series | - | |
| Part Status | Active | |
| For Measuring | Rotary Position | |
| Technology | Hall Effect | |
| Rotation Angle - Electrical, Mechanical | 0° ~ 105°, Continuous | |
| Linear Range | - | |
| Output | Analog Voltage | |
| Output Signal | Clockwise Increase | |
| Actuator Type | Recessed Slot | |
| Linearity | - | |
| Resistance (Ohms) | - | |
| Resistance Tolerance | - | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Mounting Type | Chassis Mount | |
| Termination Style | Connector | |
| Operating Temperature | -40°C ~ 125°C | |
| Standard Package | 245 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 55250-00-00-0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
55250-00-00-0 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of 55250-00-00-0 is new and unused, you can buy 55250-00-00-0 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 55250-00-00-0.
