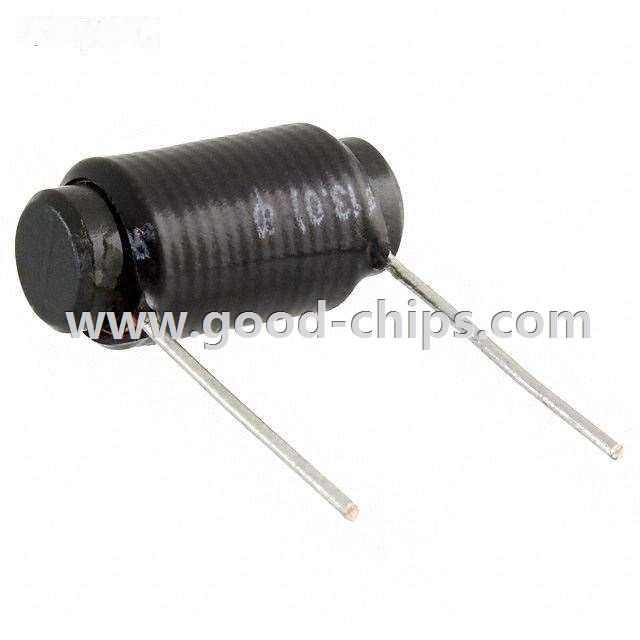

5502

5502
Manufacturer Part Number:5502
Manufacturer:
Product Category:Fixed Inductors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:10µH Unshielded Wirewound Inductor 9A 17 mOhm Max Radial
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 5502 Datasheet
5502´s Parameters
Internal Part Number898-5502
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryInductors, Coils, Chokes
FamilyFixed Inductors
ManufacturerBourns Inc.
Series5500
PackagingBulk
Part StatusObsolete
TypeWirewound
Material - CoreFerrite
Inductance10µH
Tolerance±20%
Current Rating9A
Current - Saturation-
ShieldingUnshielded
DC Resistance (DCR)17 mOhm Max
Q @ Freq-
Frequency - Self Resonant-
Ratings-
Operating Temperature-55°C ~ 105°C
Frequency - Test1kHz
Mounting TypeThrough Hole
Package / CaseRadial
Size / Dimension0.630" Dia x 1.120" L (16.00mm x 28.45mm)
Height - Seated (Max)-
Standard Package 50
Weight0.001 KG
ApplicationEmail for details
Replacement Part5502
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

5502 is in stock for immediate shipping now. We are the distributor of Bourns Inc. all series components. The condition of 5502 is new and unused, you can buy 5502 Bourns Inc. with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 5502.
