| Manufacturer Part Number: | 5501MREDRED |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9491 Pieces |
| Unit Price: | Quote by Email |

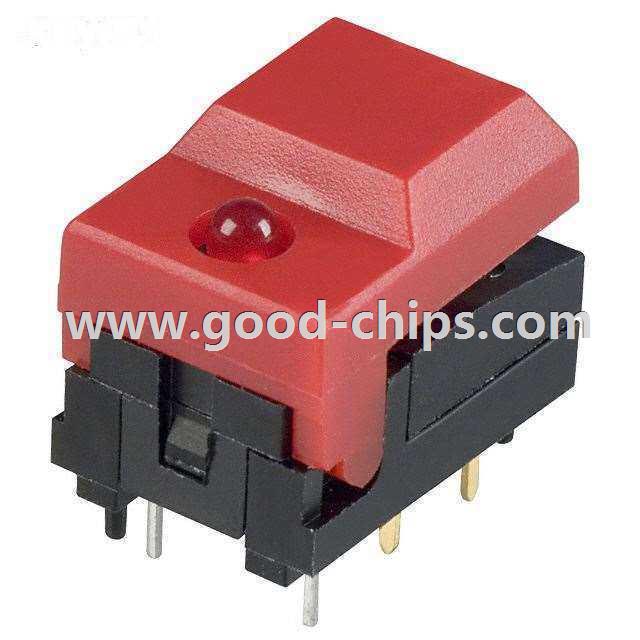

| Description: | Pushbutton Switch SPDT Keyswitch, Illuminated Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5501MREDRED Datasheet |
| Internal Part Number | 898-5501MREDRED | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switch Basics | |
| RoHS Information | 5500 Series RoHS Cert of Compliance | |
| 3D Model | 5501MREDRED.stp | |
| Online Catalog | 5500 Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | E-Switch | |
| Series | 5500 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Keyswitch, Illuminated | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 300mA (DC) | |
| Voltage Rating - AC | - | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Square, Button | |
| Color - Actuator/Cap | Red | |
| Illumination Type, Color | LED, Red | |
| Illumination Voltage (Nominal) | 2.2 VDC | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | - | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -25°C ~ 65°C | |
| Mechanical Life | 500,000 Cycles | |
| Electrical Life | - | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5501MREDRED | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5501MREDRED is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of 5501MREDRED is new and unused, you can buy 5501MREDRED E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5501MREDRED.
