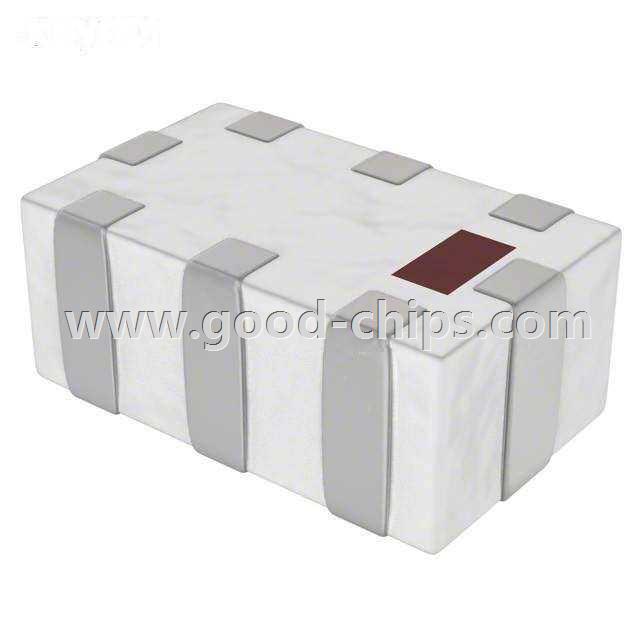

| Manufacturer Part Number: | 5300CF15A0950E |
|---|---|
| Manufacturer: | Johanson Technology Inc. |
| Product Category: | RF Directional Coupler |
| Available Quantity: | 13010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Directional Coupler 4.9GHz ~ 5.85GHz 15 ± 1dB 2W 0805 (2012 Metric), 8 PC Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5300CF15A0950E Datasheet |
| Internal Part Number | 898-5300CF15A0950E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| Online Catalog | LTCC Surface Mount Directional Couplers | |
| Category | RF/IF and RFID | |
| Family | RF Directional Coupler | |
| Manufacturer | Johanson Technology Inc. | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Coupler Type | Coupler, With Filter | |
| Frequency | 4.9GHz ~ 5.85GHz | |
| Coupling Factor | 15 ± 1dB | |
| Applications | - | |
| Insertion Loss | 0.8dB | |
| Power - Max | 2W | |
| Isolation | 22dB | |
| Return Loss | -20dB | |
| Package / Case | 0805 (2012Metric), 8 PC Pad | |
| Supplier Device Package | 0805 (2012 Metric) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5300CF15A0950E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5300CF15A0950E is in stock for immediate shipping now. We are the distributor of Johanson Technology Inc. all series components. The condition of 5300CF15A0950E is new and unused, you can buy 5300CF15A0950E Johanson Technology Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5300CF15A0950E.
