| Manufacturer Part Number: | 520N20IA26M0000 |
|---|---|
| Manufacturer: | Tusonix a Subsidiary of CTS Electronic Components |
| Product Category: | Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

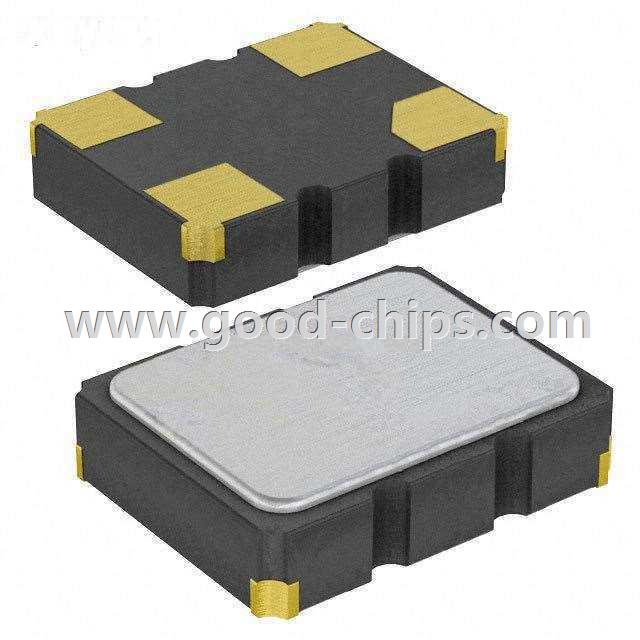

| Description: | 26MHz Clipped Sine Wave VCTCXO Oscillator Surface Mount 2.5V 2.5mA |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 520N20IA26M0000 Datasheet |
| Internal Part Number | 898-520N20IA26M0000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | CTS-Frequency Controls | |
| Series | 520 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | VCTCXO | |
| Frequency | 26MHz | |
| Function | - | |
| Output | Clipped Sine Wave | |
| Voltage - Supply | 2.5V | |
| Frequency Stability | ±2ppm | |
| Operating Temperature | -40°C ~ 85°C | |
| Current - Supply (Max) | 2.5mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height | 0.031" (0.80mm) | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Current - Supply (Disable) (Max) | - | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 520N20IA26M0000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
520N20IA26M0000 is in stock for immediate shipping now. We are the distributor of Tusonix a Subsidiary of CTS Electronic Components all series components. The condition of 520N20IA26M0000 is new and unused, you can buy 520N20IA26M0000 Tusonix a Subsidiary of CTS Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 520N20IA26M0000.
