| Manufacturer Part Number: | 516-120-000-201 |
|---|---|
| Manufacturer: | EDAC Inc. |
| Product Category: | Backplane Connectors - Housings |
| Available Quantity: | 9021 Pieces |
| Unit Price: | Quote by Email |

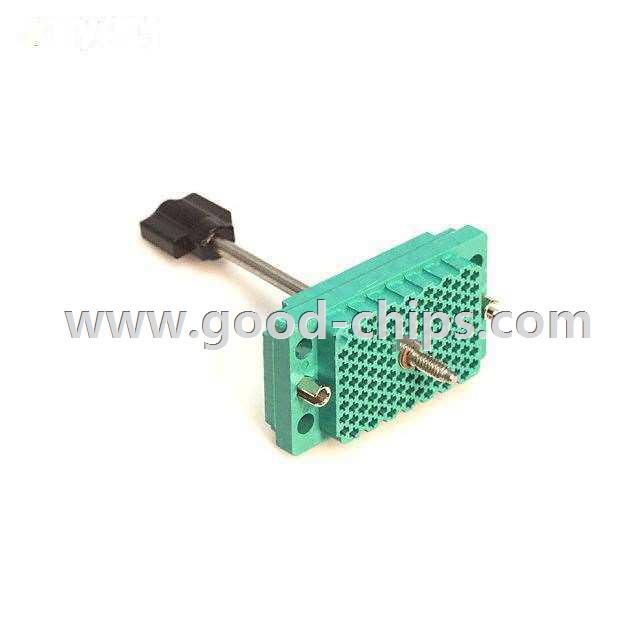

| Description: | 120 Position Housing for Non-Gendered Contacts Connector Green Varies by Contact Rack and Panel |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 516-120-000-201 Datasheet |
| Internal Part Number | 898-516-120-000-201 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 516 Series | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Housings | |
| Manufacturer | EDAC Inc. | |
| Series | 516 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Connector Type | Housing for Non-Gendered Contacts | |
| Connector Style | Rack and Panel | |
| Number of Positions | 120 | |
| Pitch | 0.150" (3.81mm) | |
| Number of Rows | 17 | |
| Mounting Type | Varies by Contact | |
| Connector Usage | Receptacle | |
| Features | Jackscrew, Guide Pin | |
| Color | Green | |
| Note | Contacts Not Provided | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 516-120-000-201 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
516-120-000-201 is in stock for immediate shipping now. We are the distributor of EDAC Inc. all series components. The condition of 516-120-000-201 is new and unused, you can buy 516-120-000-201 EDAC Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 516-120-000-201.
