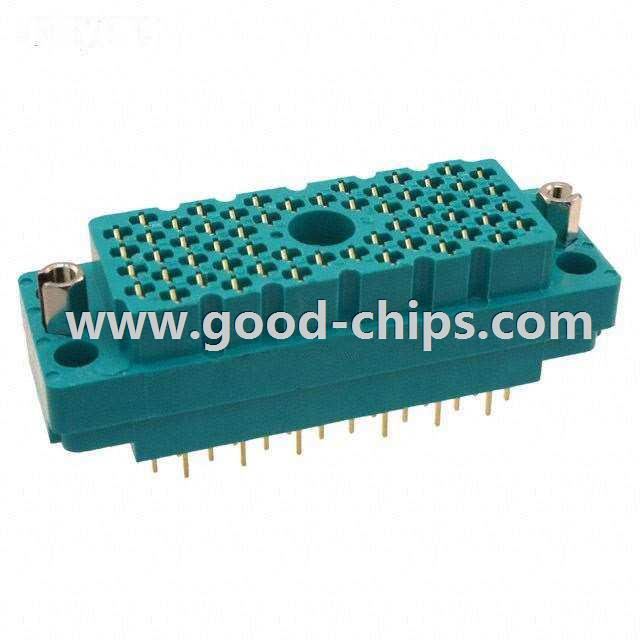

| Manufacturer Part Number: | 516-056-520-202 |
|---|---|
| Manufacturer: | EDAC Inc. |
| Product Category: | Backplane Connectors - Specialized |
| Available Quantity: | 9053 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONN RCPT 56POS RACK AND PANEL |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 516-056-520-202 Datasheet |
| Internal Part Number | 898-516-056-520-202 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Connectors, Interconnects | |
| Family | Backplane Connectors - Specialized | |
| Manufacturer | EDAC Inc. | |
| Series | 516 | |
| Packaging | Tray | |
| Part Status | Active | |
| Connector Usage | - | |
| Connector Type | Receptacle, Hermaphroditic Contacts | |
| Connector Style | Rack and Panel | |
| Number of Positions | 56 | |
| Number of Positions Loaded | All | |
| Pitch | 0.150" (3.81mm) | |
| Number of Rows | 9 | |
| Number of Columns | - | |
| Mounting Type | Panel Mount | |
| Termination | Solder | |
| Contact Layout, Typical | - | |
| Features | Jackscrew Socket | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Color | Green | |
| Current Rating | 8.5A | |
| Material Flammability Rating | UL94 V-0 | |
| Operating Temperature | -65°C ~ 125°C | |
| Voltage Rating | - | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 516-056-520-202 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
516-056-520-202 is in stock for immediate shipping now. We are the distributor of EDAC Inc. all series components. The condition of 516-056-520-202 is new and unused, you can buy 516-056-520-202 EDAC Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 516-056-520-202.
