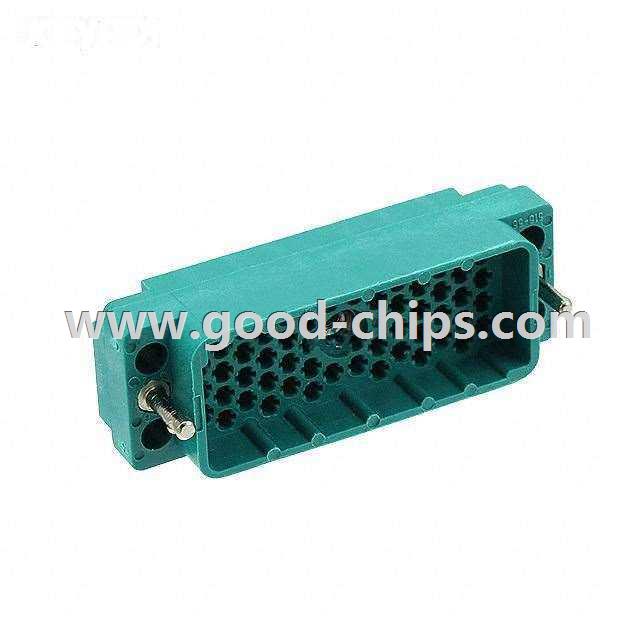

Manufacturer Part Number: | 516-056-000-502 |
---|---|
Manufacturer: | EDAC Inc. |
Product Category: | Backplane Connectors - Housings |
Available Quantity: | 9160 Pieces |
Unit Price: | Quote by Email |
Description: | 56 Position Housing for Non-Gendered Contacts Connector Green Varies by Contact Rack and Panel |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 516-056-000-502 Datasheet |
Internal Part Number | 898-516-056-000-502 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | 516 Series | |
Category | Connectors, Interconnects | |
Family | Backplane Connectors - Housings | |
Manufacturer | EDAC Inc. | |
Series | 516 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Housing for Non-Gendered Contacts | |
Connector Style | Rack and Panel | |
Number of Positions | 56 | |
Pitch | 0.150" (3.81mm) | |
Number of Rows | 9 | |
Mounting Type | Varies by Contact | |
Connector Usage | Plug | |
Features | Jackscrew Socket, Mating Guide | |
Color | Green | |
Note | Contacts Not Provided | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 516-056-000-502 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
516-056-000-502 is in stock for immediate shipping now. We are the distributor of EDAC Inc. all series components. The condition of 516-056-000-502 is new and unused, you can buy 516-056-000-502 EDAC Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 516-056-000-502.
