Manufacturer Part Number: | 514CBB000112AAG |
---|---|
Manufacturer: | Silicon Labs |
Product Category: | Programmable Oscillators |
Available Quantity: | 10875 Pieces |
Unit Price: | Quote by Email |
Description: | 100kHz ~ 170MHz CMOS XO (Standard) Programmable Oscillator Surface Mount 3.3V 26mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 514CBB000112AAG Datasheet |
Internal Part Number | 898-514CBB000112AAG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Design/Specification | Si5xx 08/Aug/2016 | |
Online Catalog | Si514 Series | |
Category | Crystals and Oscillators | |
Family | Programmable Oscillators | |
Manufacturer | Silicon Labs | |
Series | Si514 | |
Packaging | Tray | |
Part Status | Active | |
Type | XO (Standard) | |
Programmable Type | Blank (User Must Program) | |
Available Frequency Range | 100kHz ~ 170MHz | |
Function | Enable/Disable | |
Output | CMOS | |
Voltage - Supply | 3.3V | |
Frequency Stability | ±25ppm | |
Frequency Stability (Total) | ±50ppm | |
Operating Temperature | -40°C ~ 85°C | |
Spread Spectrum Bandwidth | - | |
Current - Supply (Max) | 26mA | |
Ratings | - | |
Mounting Type | Surface Mount | |

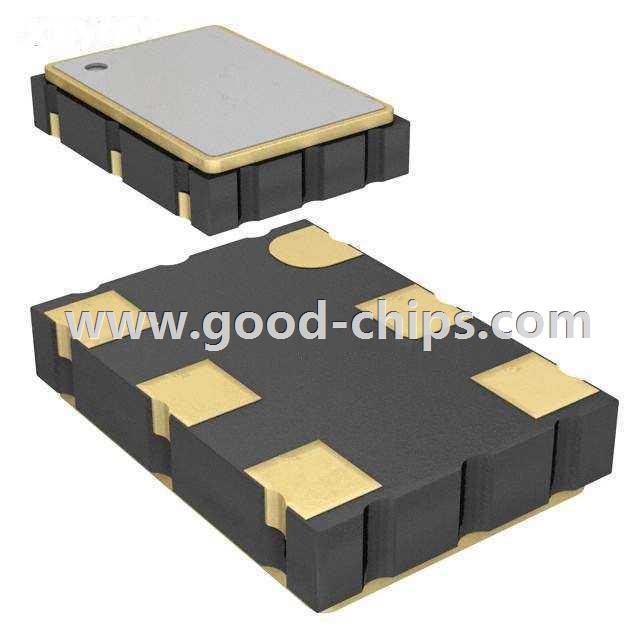

Package / Case | 6-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.276" L x 0.197" W (7.00mm x 5.00mm) | |
Height | 0.071" (1.80mm) | |
Current - Supply (Disable) (Max) | - | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 514CBB000112AAG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
514CBB000112AAG is in stock for immediate shipping now. We are the distributor of Silicon Labs all series components. The condition of 514CBB000112AAG is new and unused, you can buy 514CBB000112AAG Silicon Labs with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 514CBB000112AAG.
