Manufacturer Part Number: | 511FAA-ABAG |
---|---|
Manufacturer: | Silicon Labs |
Product Category: | Programmable Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 100kHz ~ 124.999MHz LVDS XO (Standard) Programmable Oscillator Surface Mount 2.5V 23mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 511FAA-ABAG Datasheet |
Internal Part Number | 898-511FAA-ABAG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Clock Tree Timing Solutions | |
Featured Product | Si510 and Si511 Low Jitter XOs | |
PCN Design/Specification | Si5xx 08/Aug/2016 | |
Online Catalog | Si510/511 Series | |
Category | Crystals and Oscillators | |
Family | Programmable Oscillators | |
Manufacturer | Silicon Labs | |
Series | Si511 | |
Packaging | Tray | |
Part Status | Active | |
Type | XO (Standard) | |
Programmable Type | Programmed by Digi-Key (Enter your frequency in Web Order Notes) | |
Available Frequency Range | 100kHz ~ 124.999MHz | |
Function | Enable/Disable | |
Output | LVDS | |
Voltage - Supply | 2.5V | |
Frequency Stability | ±50ppm | |
Frequency Stability (Total) | ±100ppm | |
Operating Temperature | -40°C ~ 85°C | |
Spread Spectrum Bandwidth | - | |
Current - Supply (Max) | 23mA | |
Ratings | - | |
Mounting Type | Surface Mount | |

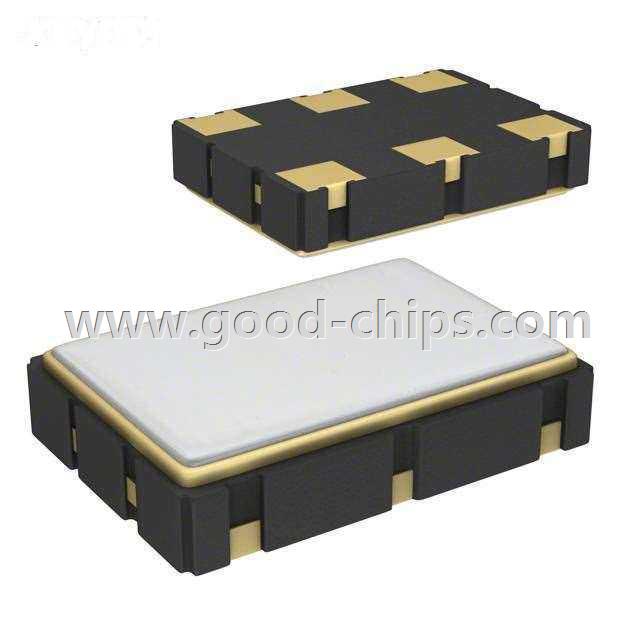

Package / Case | 6-SMD, No Lead (DFN, LCC) | |
Size / Dimension | 0.197" L x 0.126" W (5.00mm x 3.20mm) | |
Height | 0.050" (1.28mm) | |
Current - Supply (Disable) (Max) | 18mA | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 511FAA-ABAG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
511FAA-ABAG is in stock for immediate shipping now. We are the distributor of Silicon Labs all series components. The condition of 511FAA-ABAG is new and unused, you can buy 511FAA-ABAG Silicon Labs with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 511FAA-ABAG.
