Manufacturer Part Number: | 51-744-002 |
---|---|
Manufacturer: | API Technologies Corp |
Product Category: | EMI/RFI Filters (LC, RC Networks) |
Available Quantity: | 9500 Pieces |
Unit Price: | Quote by Email |

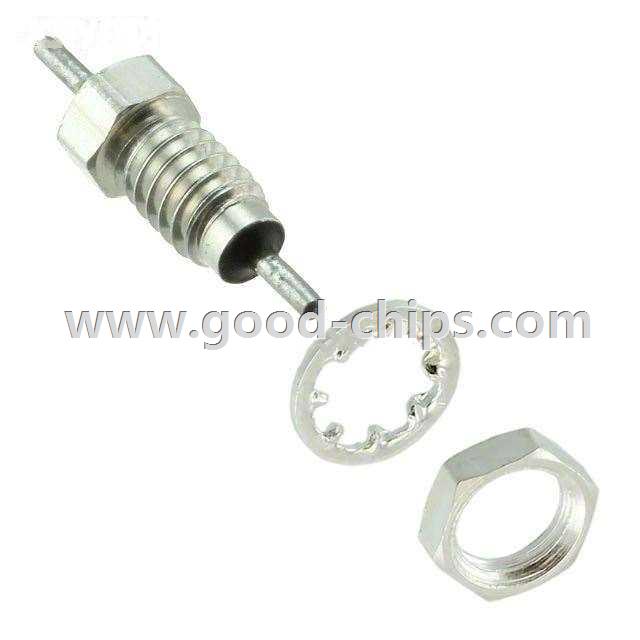

Description: | LC (Pi) EMI Filter 3rd Order Low Pass 1 Channel C = 5500pF 15A Axial, Bushing |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 51-744-002 Datasheet |
Internal Part Number | 898-51-744-002 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | EMI Filter | |
Category | Filters | |
Family | EMI/RFI Filters (LC, RC Networks) | |
Manufacturer | API Technologies Corp | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Type | Low Pass | |
Filter Order | 3rd | |
Technology | LC (Pi) | |
Number of Channels | 1 | |
Center / Cutoff Frequency | - | |
Attenuation Value | 55dB @ 100MHz | |
Resistance - Channel (Ohms) | 0.01 | |
Current | 15A | |
Values | C = 5500pF | |
ESD Protection | No | |
Operating Temperature | -55°C ~ 125°C | |
Applications | General Purpose | |
Voltage - Rated | 200V | |
Mounting Type | Chassis Mount | |
Package / Case | Axial, Bushing | |
Size / Dimension | 0.187" Dia x 0.360" L (4.75mm x 9.14mm) | |
Height | - | |
Standard Package | 50 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 51-744-002 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
51-744-002 is in stock for immediate shipping now. We are the distributor of API Technologies Corp all series components. The condition of 51-744-002 is new and unused, you can buy 51-744-002 API Technologies Corp with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 51-744-002.
