Manufacturer Part Number: | 50HV26N102KNM |
---|---|
Manufacturer: | Kemet |
Product Category: | Ceramic Capacitors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

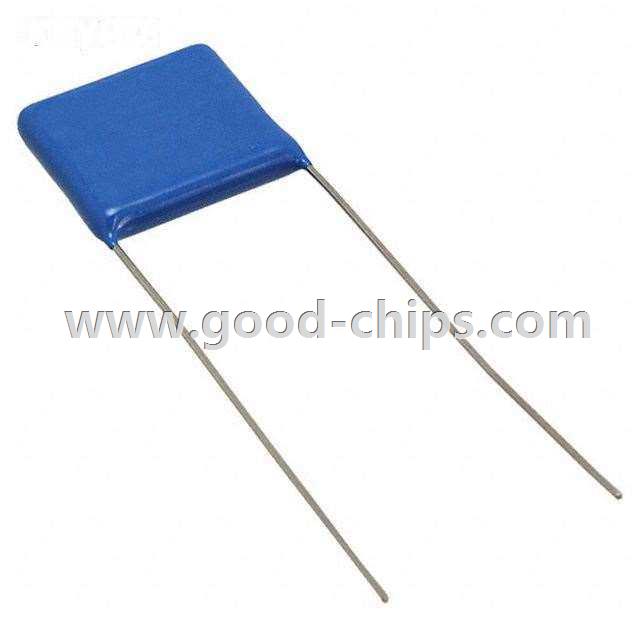

Description: | 1000pF 5000V (5kV) Ceramic Capacitor C0G, NP0 Radial 0.770" L x 0.270" W (19.56mm x 6.86mm) |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 50HV26N102KNM Datasheet |
Internal Part Number | 898-50HV26N102KNM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Axial and Radial Leaded Multilayer Ceramic Capacitors | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | HV Series | |
Category | Capacitors | |
Family | Ceramic Capacitors | |
Manufacturer | Kemet | |
Series | HV | |
Packaging | Bulk | |
Part Status | Active | |
Capacitance | 1000pF | |
Tolerance | ±10% | |
Voltage - Rated | 5000V (5kV) | |
Temperature Coefficient | C0G, NP0 | |
Mounting Type | Through Hole | |
Operating Temperature | -55°C ~ 200°C | |
Applications | SMPS Filtering, Bypass, Decoupling | |
Ratings | - | |
Package / Case | Radial | |
Size / Dimension | 0.770" L x 0.270" W (19.56mm x 6.86mm) | |
Height - Seated (Max) | 0.720" (18.30mm) | |
Thickness (Max) | - | |
Lead Spacing | 0.675" (17.14mm) | |
Features | High Voltage, High Temperature | |
Lead Style | Straight | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 50HV26N102KNM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
50HV26N102KNM is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of 50HV26N102KNM is new and unused, you can buy 50HV26N102KNM Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 50HV26N102KNM.
