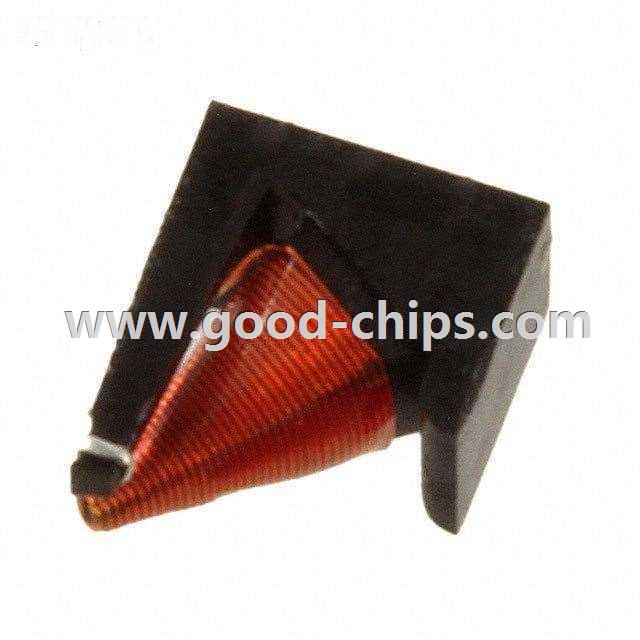

| Manufacturer Part Number: | 506WLSM2R00KT277T |
|---|---|
| Manufacturer: | American Technical Ceramics |
| Product Category: | Fixed Inductors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 2µH Unshielded Wirewound Inductor 277mA 1.6 Ohm Nonstandard |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 506WLSM2R00KT277T Datasheet |
| Internal Part Number | 898-506WLSM2R00KT277T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 506WLS Series | |
| Category | Inductors, Coils, Chokes | |
| Family | Fixed Inductors | |
| Manufacturer | American Technical Ceramics | |
| Series | 506WLS | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Wirewound | |
| Material - Core | Powdered Iron | |
| Inductance | 2µH | |
| Tolerance | ±10% | |
| Current Rating | 277mA | |
| Current - Saturation | - | |
| Shielding | Unshielded | |
| DC Resistance (DCR) | 1.6 Ohm | |
| Q @ Freq | - | |
| Frequency - Self Resonant | - | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Frequency - Test | 1MHz | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.127" L x 0.080" W (3.23mm x 2.03mm) | |
| Height - Seated (Max) | 0.105" (2.67mm) | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 506WLSM2R00KT277T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
506WLSM2R00KT277T is in stock for immediate shipping now. We are the distributor of American Technical Ceramics all series components. The condition of 506WLSM2R00KT277T is new and unused, you can buy 506WLSM2R00KT277T American Technical Ceramics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 506WLSM2R00KT277T.
