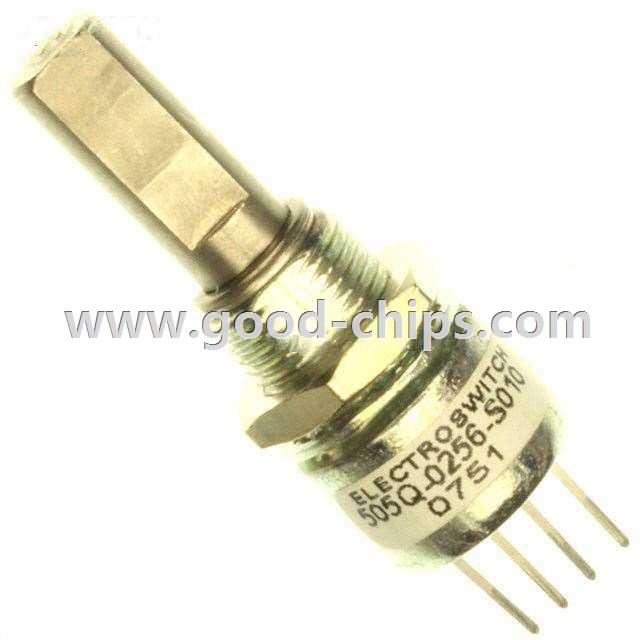

| Manufacturer Part Number: | 505Q-0256-S010 |
|---|---|
| Manufacturer: | Electroswitch |
| Product Category: | Encoders |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ENCODER MAG QUADRATURE 5VDC |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 505Q-0256-S010 Datasheet |
| Internal Part Number | 898-505Q-0256-S010 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Sensors, Transducers | |
| Family | Encoders | |
| Manufacturer | Electroswitch | |
| Series | 500 | |
| Part Status | Active | |
| Encoder Type | Magnetic | |
| Output Type | Quadrature (Incremental) | |
| Pulses per Revolution | 256 | |
| Voltage - Supply | 5V | |
| Actuator Type | 1/4" Dia Flatted End | |
| Detent | No | |
| Built in Switch | No | |
| Mounting Type | Panel, PCB Through Hole | |
| Orientation | Vertical | |
| Termination Style | PC Pin | |
| Rotational Life (Cycles Min) | 10M | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 505Q-0256-S010 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
505Q-0256-S010 is in stock for immediate shipping now. We are the distributor of Electroswitch all series components. The condition of 505Q-0256-S010 is new and unused, you can buy 505Q-0256-S010 Electroswitch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 505Q-0256-S010.
