| Manufacturer Part Number: | 5035521220 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 36010 Pieces |
| Unit Price: | Quote by Email |

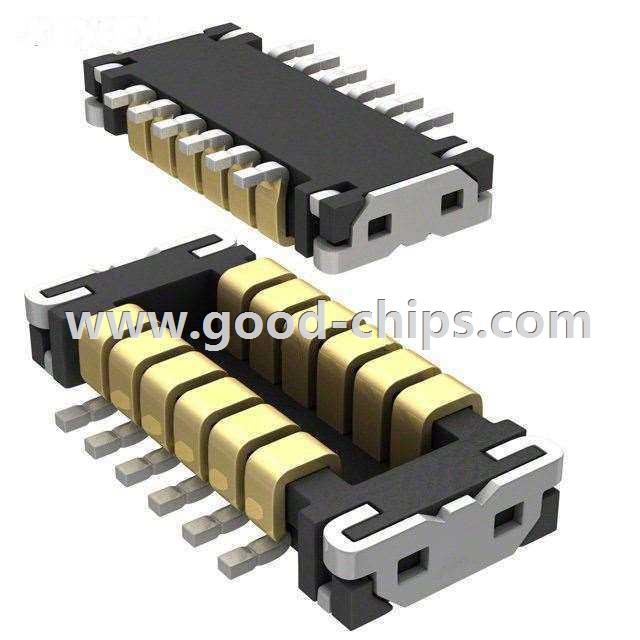

| Description: | 12 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5035521220 Datasheet |
| Internal Part Number | 898-5035521220 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex - Product Spotlight - SlimStack™ Hybrid SMT Board-to-Board Connectors | |
| RoHS Information | 5035521220 Cert of Compliance | |
| 3D Model | 503552-1220.stp 503552-1220 .pdf | |
| PCN Assembly/Origin | 503548, 503552, 505004, 104249 Series 15/Apr/2015 503552yyyy 09/Jun/2016 | |
| Online Catalog | SlimStack™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Molex, LLC | |
| Series | SlimStack™ 503552 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 12 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | - | |
| Mated Stacking Heights | 0.7mm | |
| Height Above Board | 0.022" (0.57mm) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5035521220 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5035521220 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5035521220 is new and unused, you can buy 5035521220 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5035521220.
