| Manufacturer Part Number: | 5034801600 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

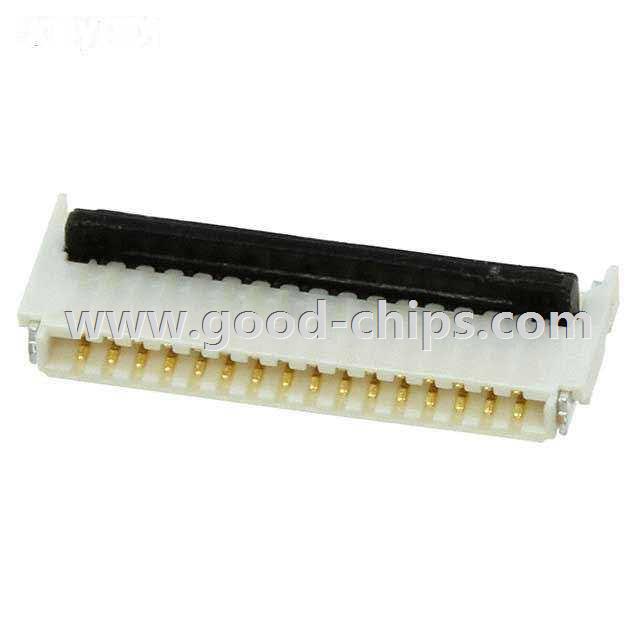

| Description: | 16 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5034801600 Datasheet |
| Internal Part Number | 898-5034801600 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 5034801600 Cert of Compliance | |
| 3D Model | 503480-1600.stp 503480-1600 .pdf | |
| PCN Obsolescence/ EOL | 503480 Series 21/Aug/2014 | |
| PCN Assembly/Origin | 503480 Series 13/Apr/2015 | |
| PCN Other | 503480 Series Retraction 30/Dec/2014 | |
| Online Catalog | BackFlip™, Easy-On™ 503480 Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Molex, LLC | |
| Series | BackFlip™, Easy-On™ 503480 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Flat Flex Type | FFC, FPC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Top and Bottom | |
| Number of Positions | 16 | |
| Pitch | 0.020" (0.50mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.30mm | |
| Height Above Board | 0.039" (1.00mm) | |
| Locking Feature | Flip Lock, Backlock | |
| Cable End Type | Straight, Tapered | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | |
| Features | Solder Retention | |
| Voltage Rating | 50V | |
| Operating Temperature | -40°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0, UL94 HB | |
| Current Rating | 0.5A | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5034801600 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5034801600 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5034801600 is new and unused, you can buy 5034801600 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5034801600.
