| Manufacturer Part Number: | 5025982793 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 12010 Pieces |
| Unit Price: | Quote by Email |

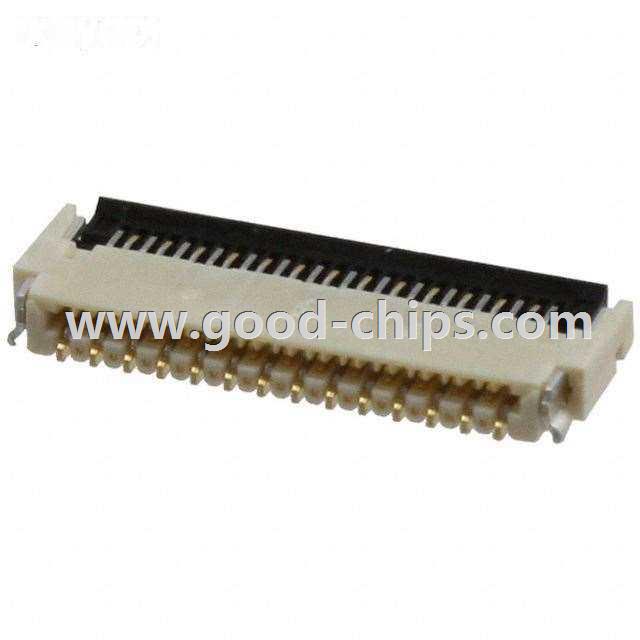

| Description: | 27 Position FPC Connector Contacts, Top and Bottom 0.012" (0.30mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5025982793 Datasheet |
| Internal Part Number | 898-5025982793 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | 0.30 mm (.012") Backflip™ Easy-On™FPC Connectors | |
| 3D Model | 502598-2793 .pdf | |
| Online Catalog | BackFlip™, Easy-On™ 502598 Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Molex, LLC | |
| Series | BackFlip™, Easy-On™ 502598 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Flat Flex Type | FPC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Top and Bottom | |
| Number of Positions | 27 | |
| Pitch | 0.012" (0.30mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.20mm | |
| Height Above Board | 0.045" (1.14mm) | |
| Locking Feature | Flip Lock, Backlock | |
| Cable End Type | Tapered | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Actuator Material | Polyamide (PA), Nylon, Glass Filled | |
| Features | Solder Retention | |
| Voltage Rating | 50V | |
| Operating Temperature | -40°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0, UL94 HB | |
| Current Rating | 0.2A | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5025982793 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5025982793 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5025982793 is new and unused, you can buy 5025982793 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5025982793.
