5024262410

5024262410
Manufacturer Part Number:5024262410
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9010 Pieces
Unit Price:Quote by Email

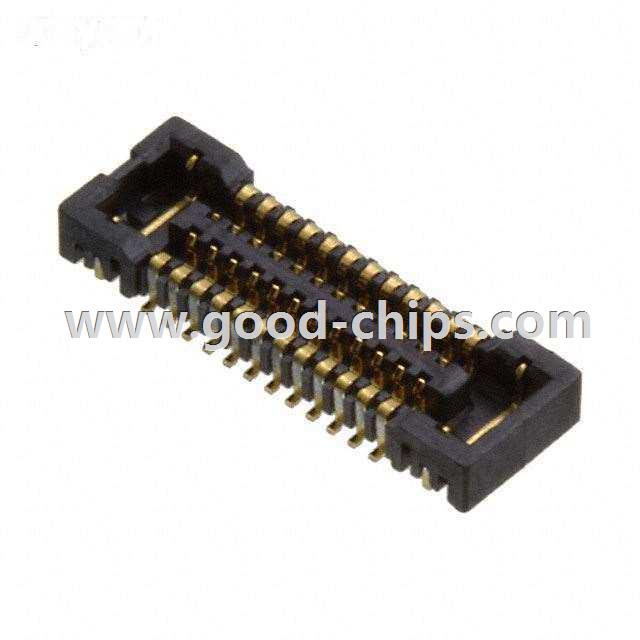

Description:24 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 5024262410 Datasheet
5024262410´s Parameters
Internal Part Number898-5024262410
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
Video FileMolex RF Connectors | Digi-Key Daily
RoHS Information5024262410 Cert of Compliance
3D Model502426-2410.stp
Online Catalog SlimStack™ Series
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerMolex Connector Corporation
SeriesSlimStack™ 502426
PackagingTape & Reel (TR)
Part StatusActive
Connector TypeReceptacle, Center Strip Contacts
Number of Positions24
Pitch0.016" (0.40mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesSolder Retention
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights1mm
Height Above Board0.039" (1.00mm)
Standard Package 750
Weight0.001 KG
ApplicationEmail for details
Replacement Part5024262410
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

5024262410 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5024262410 is new and unused, you can buy 5024262410 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 5024262410.
