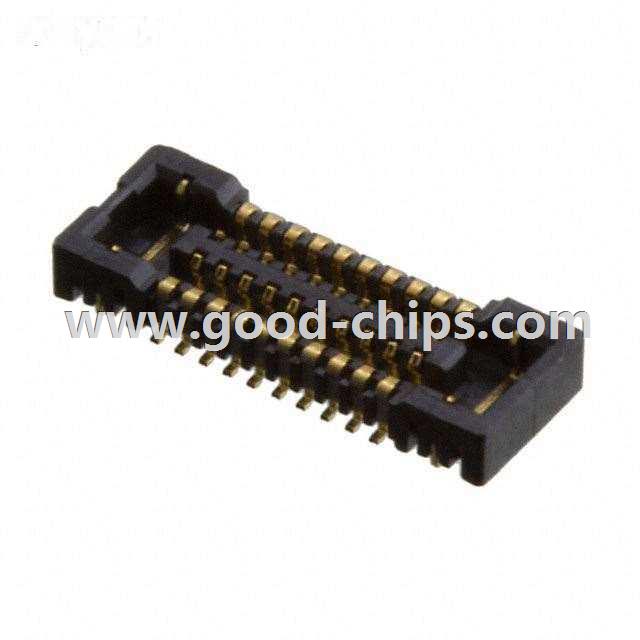

| Manufacturer Part Number: | 5024262030 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
| Available Quantity: | 9760 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5024262030 Datasheet |
| Internal Part Number | 898-5024262030 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 5024262030 Cert of Compliance | |
| 3D Model | 502426-2030.stp | |
| Online Catalog | SlimStack™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
| Manufacturer | Molex Connector Corporation | |
| Series | SlimStack™ 502426 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Connector Type | Receptacle, Center Strip Contacts | |
| Number of Positions | 20 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | 1mm | |
| Height Above Board | 0.039" (1.00mm) | |
| Standard Package | 750 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5024262030 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5024262030 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5024262030 is new and unused, you can buy 5024262030 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5024262030.
