| Manufacturer Part Number: | 5023520800 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 13210 Pieces |
| Unit Price: | Quote by Email |

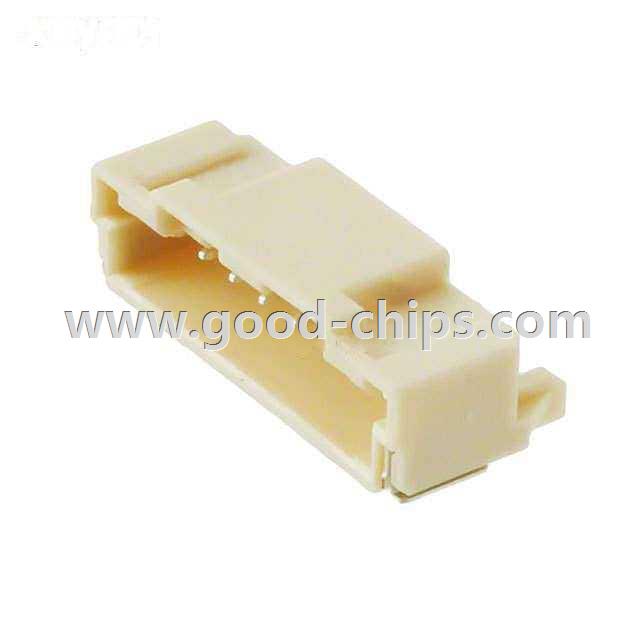

| Description: | 8 Positions Header, Shrouded Connector 0.079" (2.00mm) Surface Mount, Right Angle Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5023520800 Datasheet |
| Internal Part Number | 898-5023520800 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex - Product Spotlight - DuraClik™ Connector System | |
| RoHS Information | 5023520800 Cert of Compliance | |
| Featured Product | DuraClik Connector System | |
| 3D Model | 502352-0800.stp 502352-0800 .pdf | |
| PCN Assembly/Origin | 502352 Series 20/Apr/2015 502352 Series 05/May/2015 502352yyyyTooling 08/Jun/2016 | |
| Online Catalog | DuraClik™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | DuraClik™ 502352 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 8 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | Latch Lock | |
| Features | Solder Retention | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Natural | |
| Standard Package | 700 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5023520800 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5023520800 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5023520800 is new and unused, you can buy 5023520800 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5023520800.
