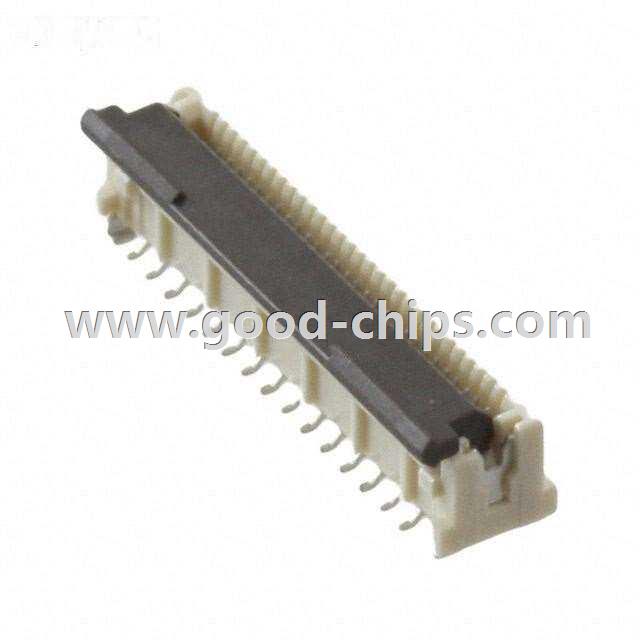

| Manufacturer Part Number: | 501951-3000 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 30 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.020" (0.50mm) Surface Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 501951-3000 Datasheet |
| Internal Part Number | 898-501951-3000 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex RF Connectors | Digi-Key Daily | |
| RoHS Information | 501951-3000 Cert of Compliance | |
| 3D Model | 501951-3000.stp | |
| Online Catalog | Easy-On™ Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Molex Connector Corporation | |
| Series | Easy-On™ 501951 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Flat Flex Type | FFC, FPC | |
| Mounting Type | Surface Mount | |
| Connector/Contact Type | Contacts, Vertical, 1 Sided | |
| Number of Positions | 30 | |
| Pitch | 0.020" (0.50mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.30mm | |
| Height Above Board | 0.159" (4.04mm) | |
| Locking Feature | Flip Lock | |
| Cable End Type | Straight, Tapered | |
| Contact Material | Copper Alloy | |
| Contact Finish | Tin Bismuth | |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | |
| Actuator Material | Polyamide (PA9T), Nylon 9T, Glass Filled | |
| Features | - | |
| Voltage Rating | 50V | |
| Operating Temperature | -25°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 0.4A | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 501951-3000 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
501951-3000 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 501951-3000 is new and unused, you can buy 501951-3000 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 501951-3000.
