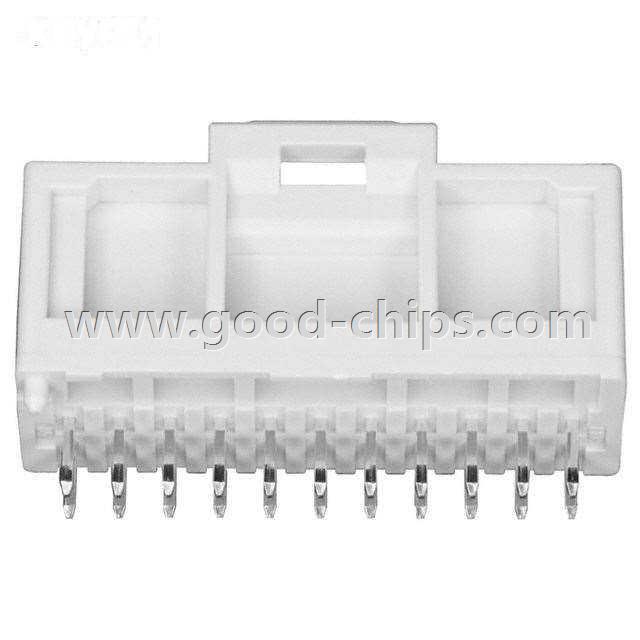

| Manufacturer Part Number: | 5016452220 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 11270 Pieces |
| Unit Price: | Quote by Email |
| Description: | 22 Positions Header, Shrouded Connector 0.079" (2.00mm) Through Hole Tin |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5016452220 Datasheet |
| Internal Part Number | 898-5016452220 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex - Product of the Quarter - Mini-Fit® | |
| RoHS Information | 501645-2220 Cert of Compliance | |
| Featured Product | iGrid™ Wire-to-Board Dual-Row Connector System | |
| 3D Model | 501645-2220.stp | |
| Online Catalog | iGrid™ Series | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | iGrid™ 501645 | |
| Packaging | Tray | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 22 | |
| Number of Positions Loaded | All | |
| Pitch | 0.079" (2.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.079" (2.00mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | Latch Holder | |
| Features | Board Guide | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Natural | |
| Standard Package | 630 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5016452220 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5016452220 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5016452220 is new and unused, you can buy 5016452220 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5016452220.
