| Manufacturer Part Number: | 5016163585 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | FFC, FPC (Flat Flexible) Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

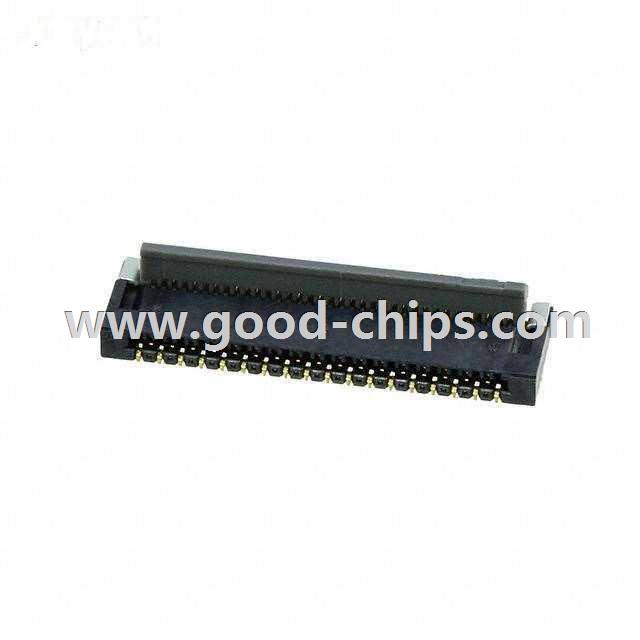

| Description: | 35 Position FPC Connector Contacts, Top 0.012" (0.30mm) Surface Mount, Right Angle |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5016163585 Datasheet |
| Internal Part Number | 898-5016163585 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 501616-3585 Cert of Compliance | |
| Featured Product | FFC - FPC (SMT) Connectors | |
| 3D Model | 501616-3585.stp | |
| Online Catalog | Easy-On™ Series | |
| Category | Connectors, Interconnects | |
| Family | FFC, FPC (Flat Flexible) Connectors | |
| Manufacturer | Molex, LLC | |
| Series | Easy-On™ 501616 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Flat Flex Type | FPC | |
| Mounting Type | Surface Mount, Right Angle | |
| Connector/Contact Type | Contacts, Top | |
| Number of Positions | 35 | |
| Pitch | 0.012" (0.30mm) | |
| Termination | Solder | |
| FFC, FCB Thickness | 0.20mm | |
| Height Above Board | 0.044" (1.10mm) | |
| Locking Feature | Flip Lock, Backlock | |
| Cable End Type | Tapered | |
| Contact Material | Copper Alloy | |
| Contact Finish | Gold | |
| Housing Material | Polymer | |
| Actuator Material | Polymer | |
| Features | Solder Retention, Zero Insertion Force (ZIF) | |
| Voltage Rating | 50V | |
| Operating Temperature | -40°C ~ 85°C | |
| Material Flammability Rating | UL94 V-0 | |
| Current Rating | 0.2A | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5016163585 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5016163585 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5016163585 is new and unused, you can buy 5016163585 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5016163585.
