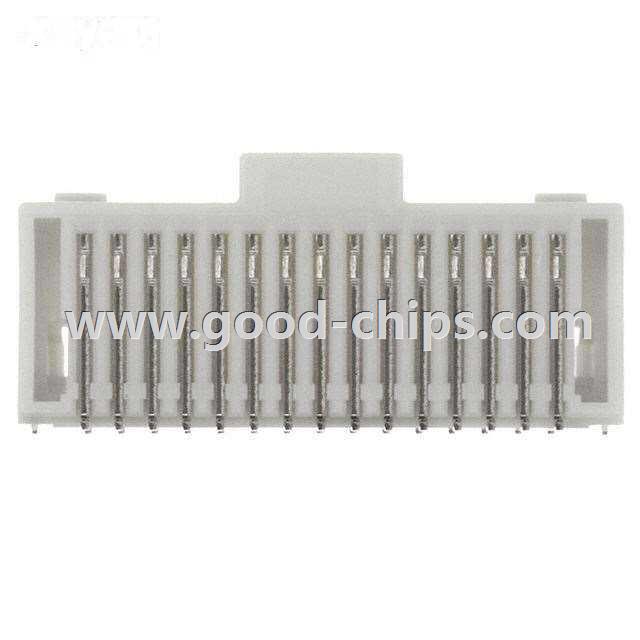

| Manufacturer Part Number: | 5015713007 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Rectangular Connectors - Headers, Male Pins |
| Available Quantity: | 11410 Pieces |
| Unit Price: | Quote by Email |
| Description: | 30 Positions Header, Shrouded Connector 0.039" (1.00mm) Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5015713007 Datasheet |
| Internal Part Number | 898-5015713007 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Molex - Product of the Quarter - Mini-Fit® | |
| RoHS Information | 501571-3007 Cert of Compliance | |
| Featured Product | Pico-Clasp™ Wire-to-Board Connector System | |
| 3D Model | 501571-3007.stp | |
| PCN Assembly/Origin | 501189,501571,501190 Series 30/Jul/2015 | |
| Category | Connectors, Interconnects | |
| Family | Rectangular Connectors - Headers, Male Pins | |
| Manufacturer | Molex, LLC | |
| Series | Pico-Clasp™ 501571 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 30 | |
| Number of Positions Loaded | All | |
| Pitch | 0.039" (1.00mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.105" (2.66mm) | |
| Contact Mating Length | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | Latch Lock | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Color | Natural | |
| Standard Package | 800 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5015713007 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5015713007 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5015713007 is new and unused, you can buy 5015713007 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5015713007.
