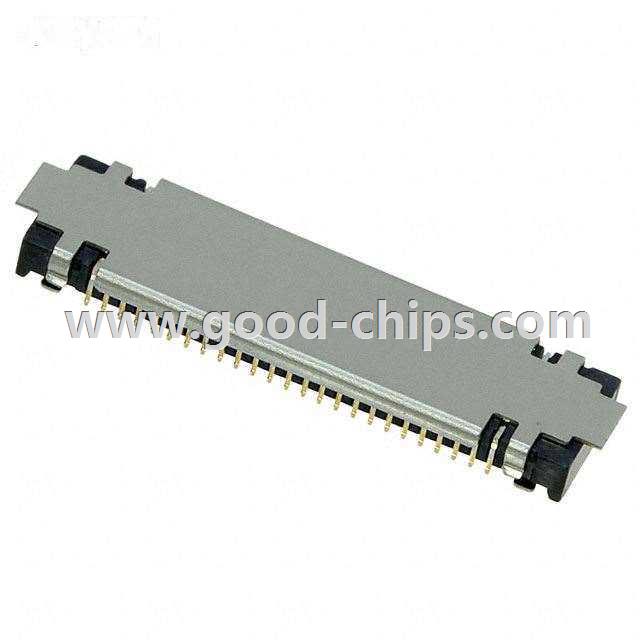

Manufacturer Part Number: | 501527-0530 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine |
Available Quantity: | 11350 Pieces |
Unit Price: | Quote by Email |
Description: | 50 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 501527-0530 Datasheet |
Internal Part Number | 898-501527-0530 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Microminiature Connectors Mezzanine SlimStack Molex RF Connectors | Digi-Key Daily | |
RoHS Information | 501527-0530 Cert of Compliance | |
Online Catalog | SlimStack™ Series | |
Category | Connectors, Interconnects | |
Family | Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine | |
Manufacturer | Molex Connector Corporation | |
Series | SlimStack™ 501527 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Receptacle, Center Strip Contacts | |
Number of Positions | 50 | |
Pitch | 0.016" (0.40mm) | |
Number of Rows | 2 | |
Mounting Type | Surface Mount | |
Features | Solder Retention | |
Contact Finish | Gold | |
Contact Finish Thickness | 8µin (0.20µm) | |
Mated Stacking Heights | 1.3mm | |
Height Above Board | 0.048" (1.22mm) | |
Standard Package | 6,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 501527-0530 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
501527-0530 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 501527-0530 is new and unused, you can buy 501527-0530 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 501527-0530.
