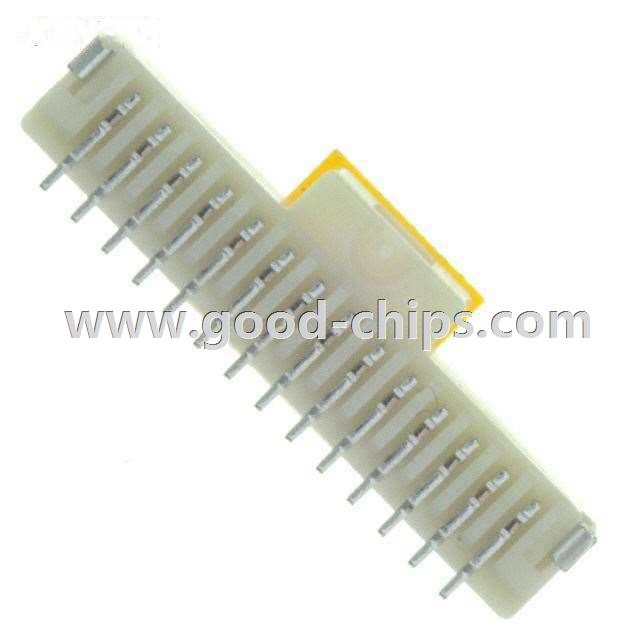

Manufacturer Part Number: | 501331-1407 |
---|---|
Manufacturer: | Molex, LLC |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 14 Positions Header, Shrouded Connector 0.039" (1.00mm) Surface Mount Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 501331-1407 Datasheet |
Internal Part Number | 898-501331-1407 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Molex - Product of the Quarter - Mini-Fit® | |
RoHS Information | 501331-1407 Cert of Compliance | |
Featured Product | Pico-Clasp™ Wire-to-Board Connector System | |
3D Model | 501331-1407.stp | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | Molex Connector Corporation | |
Series | Pico-Clasp™ 501331 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 14 | |
Number of Positions Loaded | All | |
Pitch | 0.039" (1.00mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | - | |
Mounting Type | Surface Mount | |
Termination | Solder | |
Fastening Type | Detent Lock | |
Features | Solder Retention | |
Contact Finish | Tin | |
Contact Finish Thickness | 40µin (1.02µm) | |
Color | Natural | |
Standard Package | 1,100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 501331-1407 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
501331-1407 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 501331-1407 is new and unused, you can buy 501331-1407 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 501331-1407.
