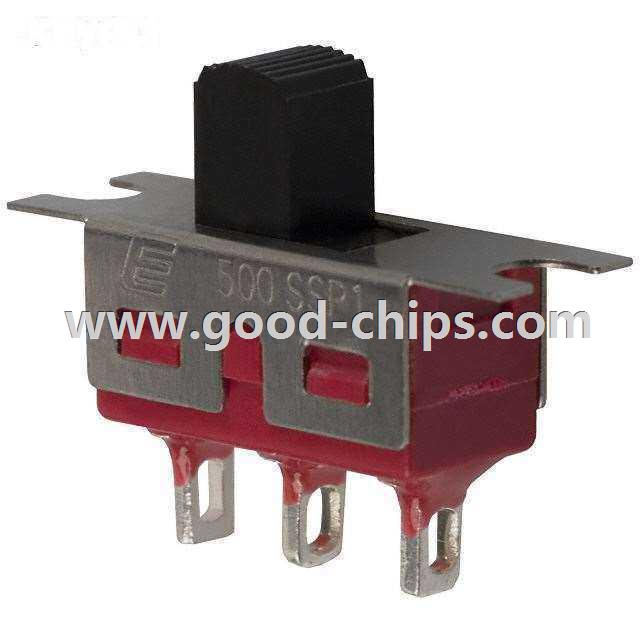

| Manufacturer Part Number: | 500SSP1S1M1QEB |
|---|---|
| Manufacturer: | E-Switch |
| Product Category: | Slide Switches |
| Available Quantity: | 9299 Pieces |
| Unit Price: | Quote by Email |
| Description: | Slide Switch SPDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 500SSP1S1M1QEB Datasheet |
| Internal Part Number | 898-500SSP1S1M1QEB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Switch Basics Power Switch Overview | |
| RoHS Information | 500 Series RoHS Cert of Compliance | |
| 3D Model | 500SSPxS1M1xEB.stp | |
| Online Catalog | 500 Series | |
| Category | Switches | |
| Family | Slide Switches | |
| Manufacturer | E-Switch | |
| Series | 500 | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Contact Timing | Not Specified | |
| Switch Function | On-On | |
| Current Rating | 5A (AC/DC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | 28V | |
| Actuator Type | Standard | |
| Actuator Length | 5.08mm | |
| Contact Material | Copper Alloy | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount | |
| Termination Style | Solder Lug | |
| Features | Epoxy Sealed Terminals | |
| Actuator Material | Polyamide (PA), Nylon | |
| Switch Travel | 2.16mm | |
| Operating Temperature | -30°C ~ 85°C | |
| Mechanical Life | 30,000 Cycles | |
| Electrical Life | 30,000 Cycles | |
| Operating Force | - | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 500SSP1S1M1QEB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
500SSP1S1M1QEB is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of 500SSP1S1M1QEB is new and unused, you can buy 500SSP1S1M1QEB E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 500SSP1S1M1QEB.
