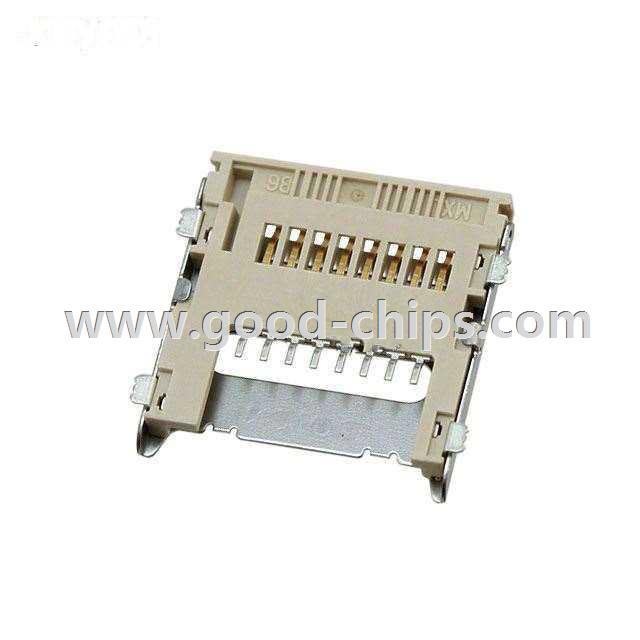

| Manufacturer Part Number: | 5009010801 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Memory Connectors - PC Card Sockets |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 8 Position Card Connector Secure Digital - microSD™ Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 5009010801 Datasheet |
| Internal Part Number | 898-5009010801 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Microminiature Connectors SD Memory Card Connectors microSD connectors | |
| 3D Model | 500901-0801.stp | |
| PCN Assembly/Origin | Multiple Devices Origin24/Aug/2016 | |
| PCN Other | 5009010801 Tooling 13/Jun/2014 | |
| Online Catalog | microSD™ Series | |
| Category | Connectors, Interconnects | |
| Family | Memory Connectors - PC Card Sockets | |
| Manufacturer | Molex, LLC | |
| Series | 500901 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Card Type | Secure Digital - microSD™ | |
| Number of Positions | 8 | |
| Connector Type | Connector and Ejector | |
| Insertion, Removal Method | Hinged Lid | |
| Ejector Side | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Features | - | |
| Height Above Board | 0.076" (1.92mm) | |
| Mounting Feature | Normal, Standard - Top | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 20µin (0.51µm) | |
| Standard Package | 1,400 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 5009010801 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
5009010801 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5009010801 is new and unused, you can buy 5009010801 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5009010801.
