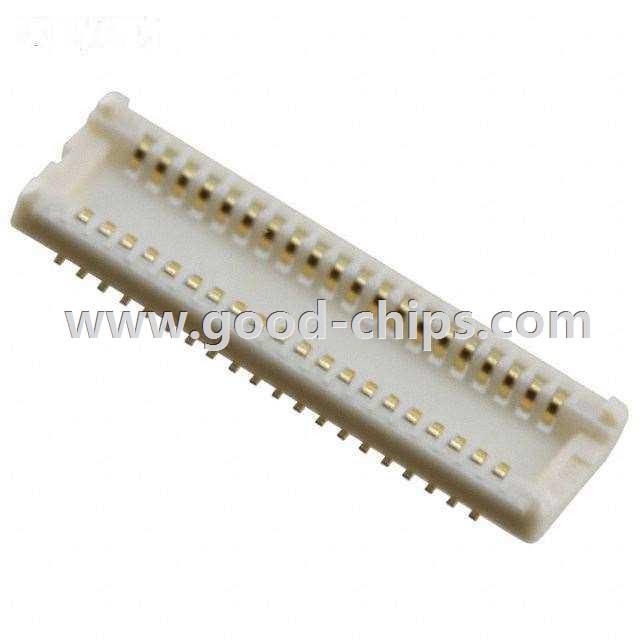

5000274041

5000274041
Manufacturer Part Number:5000274041
Manufacturer:
Product Category:Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:40 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 5000274041 Datasheet
5000274041´s Parameters
Internal Part Number898-5000274041
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model500027-4041.stp
CategoryConnectors, Interconnects
FamilyRectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
ManufacturerMolex, LLC
SeriesSlimStack™ 500027
PackagingCut Tape (CT)
Part StatusObsolete
Connector TypePlug, Outer Shroud Contacts
Number of Positions40
Pitch0.016" (0.40mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesSolder Retention
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights0.95mm
Height Above Board0.037" (0.95mm)
Standard Package 1
Weight0.001 KG
ApplicationEmail for details
Replacement Part5000274041
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

5000274041 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 5000274041 is new and unused, you can buy 5000274041 Molex, LLC with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 5000274041.
