Manufacturer Part Number: | 5-826955-0 |
---|---|
Manufacturer: | TE Connectivity Potter & Brumfield Relays |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

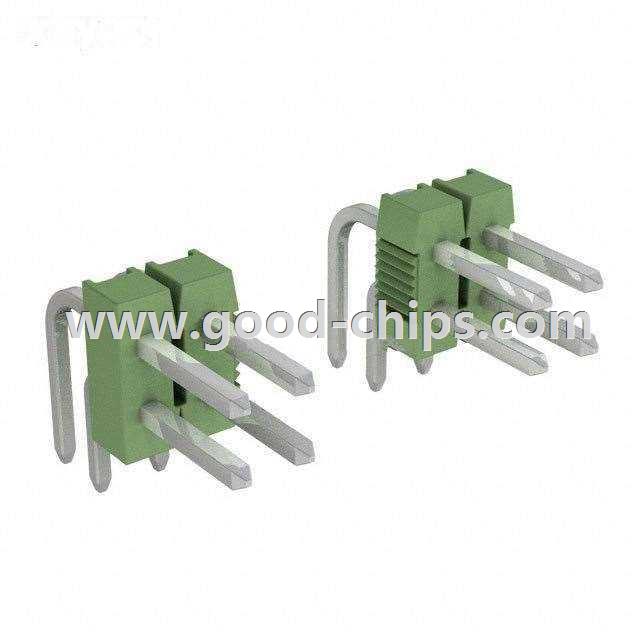

Description: | 100 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Through Hole, Right Angle Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 5-826955-0 Datasheet |
Internal Part Number | 898-5-826955-0 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 5-826955-0 Statement of Compliance RoHS 2 Statement | |
EDA / CAD Models | Download from Accelerated Designs | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | TE Connectivity AMP Connectors | |
Series | AMPMODU Mod II | |
Packaging | Bulk | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Unshrouded, Breakaway | |
Number of Positions | 100 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 2 | |
Row Spacing | 0.100" (2.54mm) | |
Contact Mating Length | 0.228" (5.80mm) | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | 78.7µin (2.00µm) | |
Color | Green | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 5-826955-0 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
5-826955-0 is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of 5-826955-0 is new and unused, you can buy 5-826955-0 TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5-826955-0.
