Manufacturer Part Number: | 5-146132-1 |
---|---|
Manufacturer: | TE Connectivity Potter & Brumfield Relays |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 15963 Pieces |
Unit Price: | Quote by Email |

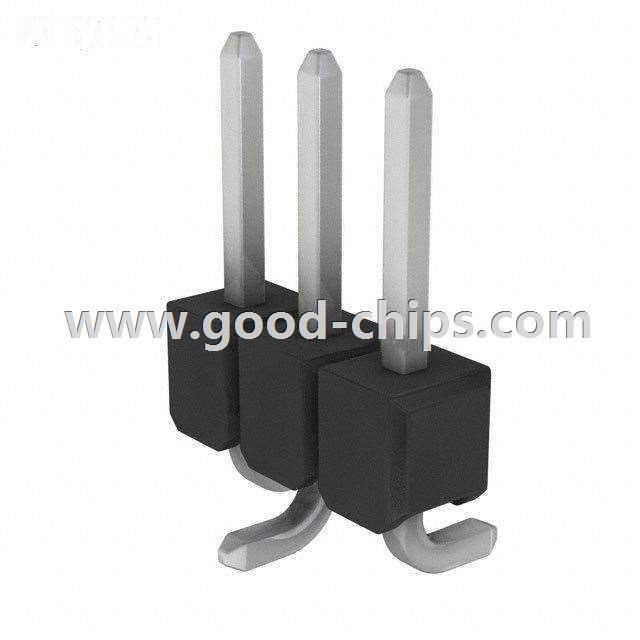

Description: | 3 Positions Header, Unshrouded, Breakaway Connector 0.100" (2.54mm) Surface Mount Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 5-146132-1 Datasheet |
Internal Part Number | 898-5-146132-1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | 5-146132-1 Statement of Compliance RoHS 2 Statement | |
3D Model | 5-146132-1.pdf | |
Online Catalog | AMPMODU Mod II Series | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | TE Connectivity AMP Connectors | |
Series | AMPMODU Mod II | |
Packaging | Tube | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Unshrouded, Breakaway | |
Number of Positions | 3 | |
Number of Positions Loaded | All | |
Pitch | 0.100" (2.54mm) | |
Number of Rows | 1 | |
Row Spacing | - | |
Contact Mating Length | 0.230" (5.84mm) | |
Mounting Type | Surface Mount | |
Termination | Solder | |
Fastening Type | - | |
Features | - | |
Contact Finish | Tin | |
Contact Finish Thickness | 100µin (2.54µm) | |
Color | Black | |
Standard Package | 73 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 5-146132-1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
5-146132-1 is in stock for immediate shipping now. We are the distributor of TE Connectivity Potter & Brumfield Relays all series components. The condition of 5-146132-1 is new and unused, you can buy 5-146132-1 TE Connectivity Potter & Brumfield Relays with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 5-146132-1.
