| Manufacturer Part Number: | 4TL1-10E |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Toggle Switches |
| Available Quantity: | 9022 Pieces |
| Unit Price: | Quote by Email |

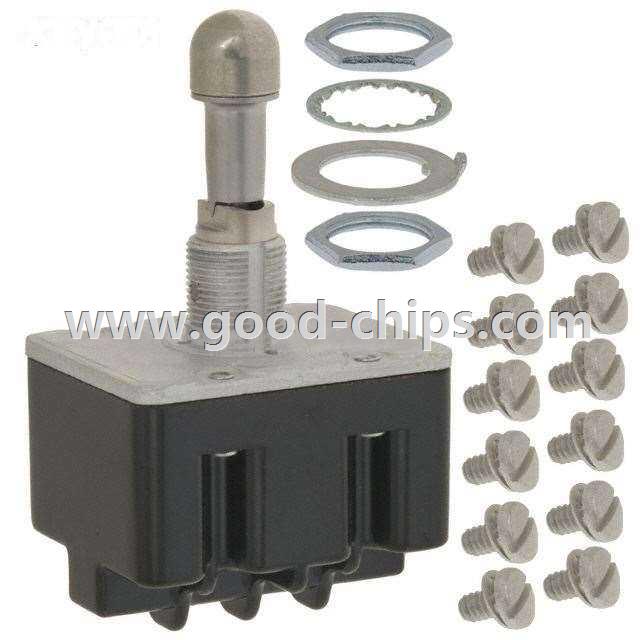

| Description: | Toggle Switch 4PDT Panel Mount |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 4TL1-10E Datasheet |
| Internal Part Number | 898-4TL1-10E | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Electromechanical Switch Technology | |
| Featured Product | MICRO SWITCH™ TL Series Toggle Switches | |
| Online Catalog | TL Series | |
| Category | Switches | |
| Family | Toggle Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | TL | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | 4PDT | |
| Switch Function | On-On-On | |
| Current Rating | 15A (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Locking Lever | |
| Actuator Length | 26.67mm | |
| Illumination | Non-Illuminated | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount | |
| Termination Style | Screw Terminal | |
| Panel Cutout Dimensions | Circular - 12.40mm Dia | |
| Bushing Thread | 15/32-32 | |
| Ingress Protection | Environment Proof | |
| Features | - | |
| Actuator Material | Nickel Plated | |
| Electrical Life | - | |
| Operating Temperature | -65°C ~ 71°C | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 4TL1-10E | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
4TL1-10E is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of 4TL1-10E is new and unused, you can buy 4TL1-10E Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4TL1-10E.
