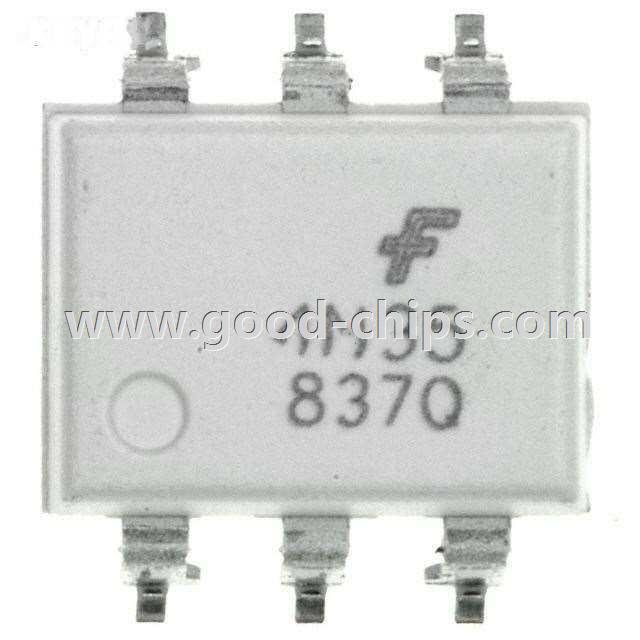

| Manufacturer Part Number: | 4N35SR2M |
|---|---|
| Manufacturer: | Fairchild Semiconductor |
| Product Category: | Optoisolators - Transistor, Photovoltaic Output |
| Available Quantity: | 18010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Optoisolator Transistor with Base Output 4170Vrms 1 Channel 6-SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 4N35SR2M Datasheet |
| Internal Part Number | 898-4N35SR2M | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | 4N25, 26, 27, 28, 35, 36, 37Series | |
| Category | Isolators | |
| Family | Optoisolators - Transistor, Photovoltaic Output | |
| Manufacturer | Fairchild Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Number of Channels | 1 | |
| Voltage - Isolation | 4170Vrms | |
| Current Transfer Ratio (Min) | 100% @ 10mA | |
| Current Transfer Ratio (Max) | - | |
| Turn On / Turn Off Time (Typ) | 2µs, 2µs | |
| Rise / Fall Time (Typ) | - | |
| Input Type | DC | |
| Output Type | Transistor with Base | |
| Voltage - Output (Max) | 30V | |
| Current - Output / Channel | - | |
| Voltage - Forward (Vf) (Typ) | 1.18V | |
| Current - DC Forward (If) (Max) | 60mA | |
| Vce Saturation (Max) | 300mV | |
| Operating Temperature | -40°C ~ 100°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, Gull Wing | |
| Supplier Device Package | 6-SMD | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 4N35SR2M | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
4N35SR2M is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of 4N35SR2M is new and unused, you can buy 4N35SR2M Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4N35SR2M.
