Manufacturer Part Number: | 4922R-32L |
---|---|
Manufacturer: | API Delevan Inc. |
Product Category: | Fixed Inductors |
Available Quantity: | 10304 Pieces |
Unit Price: | Quote by Email |
Description: | 390µH Unshielded Wirewound Inductor 380mA 2.73 Ohm Max Nonstandard |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 4922R-32L Datasheet |
Internal Part Number | 898-4922R-32L | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |

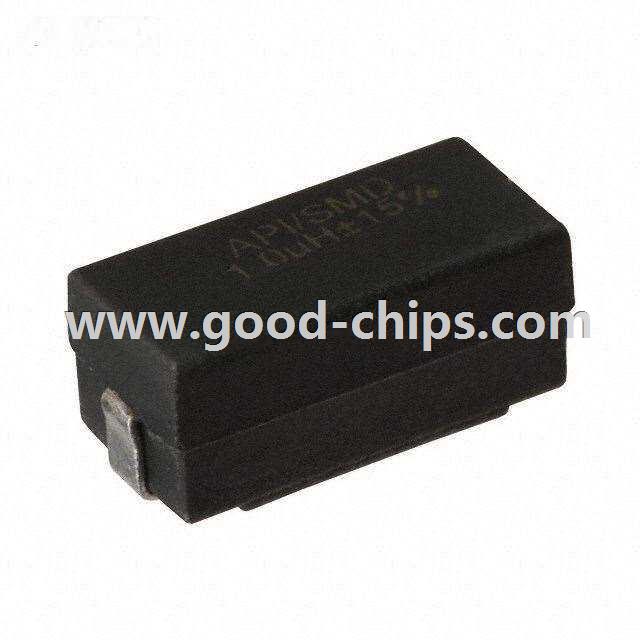

Online Catalog | 4922 and 4922R Series | |
Category | Inductors, Coils, Chokes | |
Family | Fixed Inductors | |
Manufacturer | API Delevan Inc. | |
Series | 4922R | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Type | Wirewound | |
Material - Core | Ferrite | |
Inductance | 390µH | |
Tolerance | ±15% | |
Current Rating | 380mA | |
Current - Saturation | 380mA | |
Shielding | Unshielded | |
DC Resistance (DCR) | 2.73 Ohm Max | |
Q @ Freq | - | |
Frequency - Self Resonant | - | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Frequency - Test | 1kHz | |
Mounting Type | Surface Mount | |
Package / Case | Nonstandard | |
Size / Dimension | 0.505" L x 0.240" W (12.82mm x 6.09mm) | |
Height - Seated (Max) | 0.230" (5.84mm) | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 4922R-32L | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
4922R-32L is in stock for immediate shipping now. We are the distributor of API Delevan Inc. all series components. The condition of 4922R-32L is new and unused, you can buy 4922R-32L API Delevan Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4922R-32L.
