Manufacturer Part Number: | 4840-6004-CP |
---|---|
Manufacturer: | 3M |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 12772 Pieces |
Unit Price: | Quote by Email |

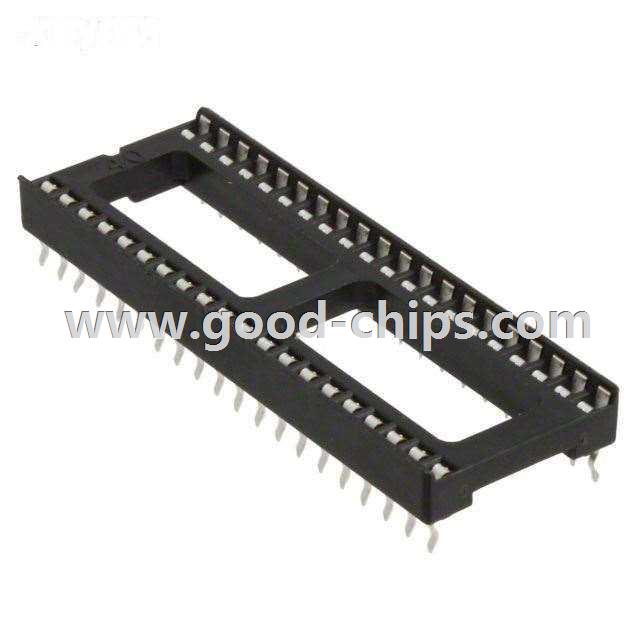

Description: | CONN IC DIP SOCKET 40POS TIN |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | 4840-6004-CP Datasheet |
Internal Part Number | 898-4840-6004-CP | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | 4840-600x.stp 4840-600x.igs 4840-600x.x_t | |
Online Catalog | 4800 Series | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | 3M | |
Series | 4800 | |
Packaging | Tube | |
Part Status | Active | |
Type | DIP, 0.6" (15.24mm) Row Spacing | |
Number of Positions or Pins (Grid) | 40 (2 x 20) | |
Pitch - Mating | 0.100" (2.54mm) | |
Contact Finish - Mating | Tin | |
Contact Finish Thickness - Mating | 35µin (0.90µm) | |
Contact Material - Mating | Phosphor Bronze | |
Mounting Type | Through Hole | |
Features | Open Frame | |
Termination | Solder | |
Pitch - Post | 0.100" (2.54mm) | |
Contact Finish - Post | Tin | |
Contact Finish Thickness - Post | 35µin (0.90µm) | |
Contact Material - Post | Phosphor Bronze | |
Housing Material | Polyester, Glass Filled | |
Operating Temperature | -25°C ~ 85°C | |
Termination Post Length | - | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | 1A | |
Contact Resistance | - | |
Standard Package | 2,400 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | 4840-6004-CP | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
4840-6004-CP is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of 4840-6004-CP is new and unused, you can buy 4840-6004-CP 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 4840-6004-CP.
