48254-000LF

48254-000LF
Manufacturer Part Number:48254-000LF
Manufacturer:
Product Category:Rectangular Connectors - Contacts
Available Quantity:24511 Pieces
Unit Price:Quote by Email

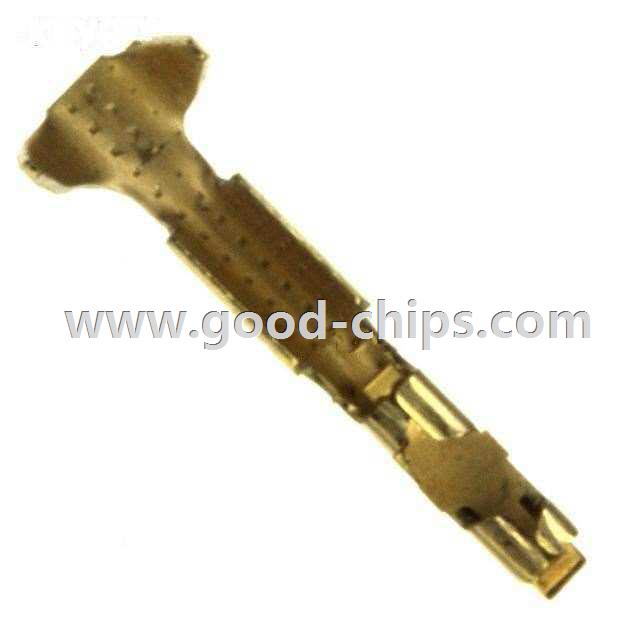

Description:CONN SOCKET 22-26AWG CRIMP GOLD
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: 48254-000LF Datasheet
48254-000LF´s Parameters
Internal Part Number898-48254-000LF
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
3D Model48254-000LF.stp
48254-000LF.igs
48254-000LF.prt
PCN Design/SpecificationMini, Maxi PV Plating 26/Aug/2008
Gold flash removal 27/Oct/2011
PCN Assembly/OriginMini, Maxi, CTW 02/may/2013
PV Terminals Location Change 11/Jun/2015
Online Catalog Mini-PV™, Basics+
CategoryConnectors, Interconnects
FamilyRectangular Connectors - Contacts
ManufacturerAmphenol FCI
SeriesMini-PV™, Basics+
PackagingBulk
Part StatusActive
Type-
Pin or SocketSocket
Contact TerminationCrimp
Wire Gauge22-26 AWG
Contact FinishGold
Contact Finish Thickness15µin (0.38µm)
Standard Package 1,000
Weight0.001 KG
ApplicationEmail for details
Replacement Part48254-000LF
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

48254-000LF is in stock for immediate shipping now. We are the distributor of Amphenol FCI all series components. The condition of 48254-000LF is new and unused, you can buy 48254-000LF Amphenol FCI with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for 48254-000LF.
