| Manufacturer Part Number: | 48146-0011 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Modular Connectors - Jacks |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

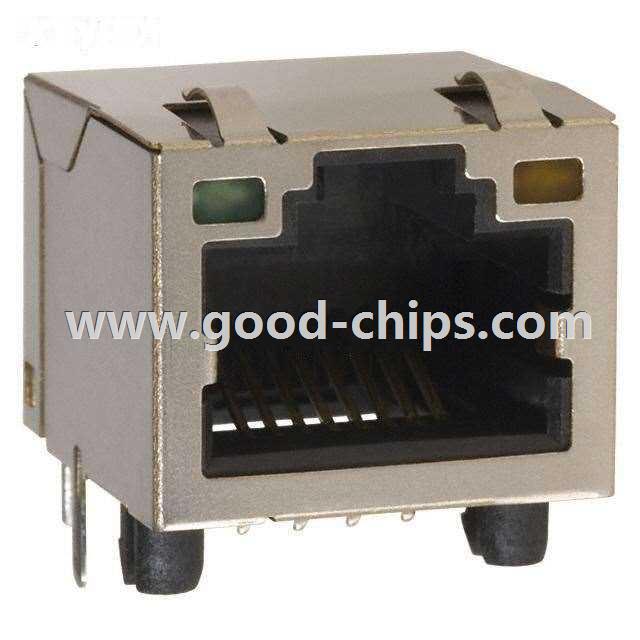

| Description: | Jack Modular Connector 8p8c (RJ45, Ethernet) 90° Angle (Right) Shielded, EMI Finger Cat5 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 48146-0011 Datasheet |
| Internal Part Number | 898-48146-0011 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | 48146-0011 Cert of Compliance | |
| Featured Product | Modular Jacks and Plugs | |
| 3D Model | 48146-0011.stp | |
| Category | Connectors, Interconnects | |
| Family | Modular Connectors - Jacks | |
| Manufacturer | Molex Connector Corporation | |
| Series | 48146 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Connector Type | Jack | |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) | |
| Number of Ports | 1 | |
| Number of Rows | 1 | |
| Mounting Type | Through Hole | |
| Orientation | 90° Angle (Right) | |
| Termination | Solder | |
| Shielding | Shielded, EMI Finger | |
| Ratings | Cat5 | |
| Features | Board Lock | |
| LED Color | Green - Amber | |
| Ingress Protection | - | |
| Tab Direction | Up | |
| Contact Material | Phosphor Bronze | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 50µin (1.27µm) | |
| Housing Material | Thermoplastic | |
| Operating Temperature | -40°C ~ 85°C | |
| Standard Package | 1,152 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 48146-0011 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
48146-0011 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 48146-0011 is new and unused, you can buy 48146-0011 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 48146-0011.
