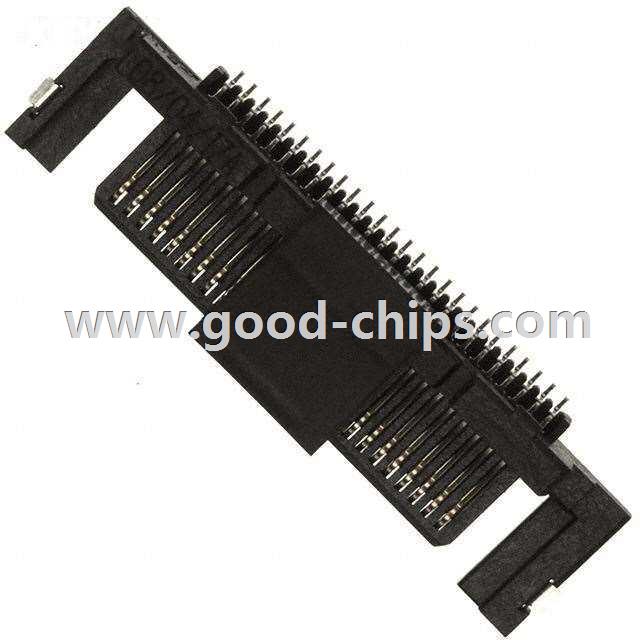

| Manufacturer Part Number: | 47322-0002 |
|---|---|
| Manufacturer: | Molex, LLC |
| Product Category: | Memory Connectors - PC Card Sockets |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 26 Position Card Connector PCMCIA - ExpressCard™ Surface Mount, Right Angle Gold |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | 47322-0002 Datasheet |
| Internal Part Number | 898-47322-0002 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | 47322-0002.stp | |
| PCN Obsolescence/ EOL | 47322 Series 11/Aug/2010 | |
| Category | Connectors, Interconnects | |
| Family | Memory Connectors - PC Card Sockets | |
| Manufacturer | Molex Connector Corporation | |
| Series | 47322 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Card Type | PCMCIA - ExpressCard™ | |
| Number of Positions | 26 | |
| Connector Type | Connector | |
| Insertion, Removal Method | Push In, Pull Out | |
| Ejector Side | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Features | Board Guide | |
| Height Above Board | 0.236" (6.00mm) | |
| Mounting Feature | Reverse - Bottom | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Standard Package | 300 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | 47322-0002 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
47322-0002 is in stock for immediate shipping now. We are the distributor of Molex, LLC all series components. The condition of 47322-0002 is new and unused, you can buy 47322-0002 Molex, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for 47322-0002.
